BUR GAR6429 2/0-250CU 3/8IPS

Manufacturer: Hubbell-Burndy | Catalog # GAR6429 | Codale Part # 103155
$54.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
36 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet

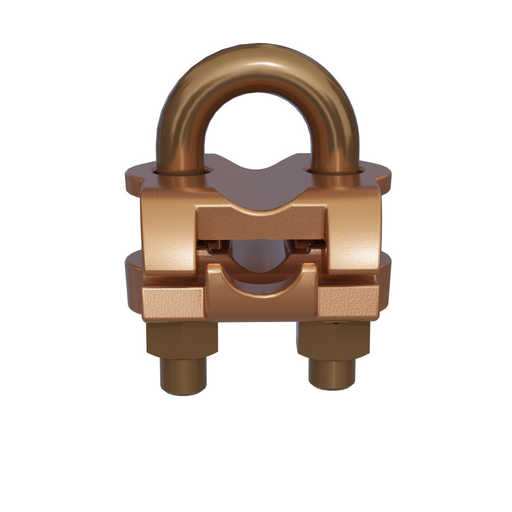

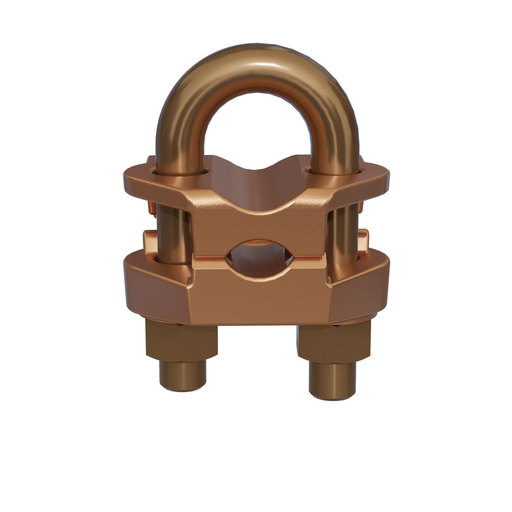

Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped.

Technical Information

Applications
For Joining a Range of Cable, Parallel or at Right Angles to Rod or Tube, Direct Burial Cable, Fence Post
Blade Dimensions
2-1/8 in W x 2-7/8 in H
Bolt Size
3/8 IN
Conductor Size
2/0 AWG Solid - 250 kcmil
Material
Copper
Mounting Type
3/8 in
Plated?
No
Plating Type
Bright Dipped
Type
Mechanical

Manufacturer Information

Family Brand Name
Burndy
Sub Brand
MECHANICAL CONNECTOR

General Product Info

Product UPC
78181023840
Used With
#5 - #6 Rebars

Dimensions

Height
2.87 Inch
Length
1.81 Inch
Overall Length
1.81 in
Width
2.06 in

Certifications and Compliance

Country of Origin
Mexico
CSA
No
Application
For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Direct Burial Cable, Fence Post
Codale Part No.
103155
Material
Copper Alloy
Product Long Description
Mechanical Grounding Connector, Cable to Rod or Pipe, 2/0 AWG (Sol) -250 kcmil, 3/8" Pipe, 5/8"-3/4" Rod, #5-#6 Rebar, Bright Dipped.
Sub Brand
MECHANICAL CONNECTOR
Type
GAR
  • High Copper Alloy Ground Connector For Joining A Range Of Cable, Parallel Or At Right Angles To Rod Or Tube, Especially Good For Fence Posts, High Copper Alloy Cast Body With DURIUM U-Bolts, Nuts And Lockwashers, Permit Entire Connection To Be Buried In Ground Or Concrete Without Danger Of Corrosion, One-Wrench Installation, UL467 Listed, Acceptable For Direct Burial, Height: 2-7/8 IN, Ground Rod Size: 5/8 - 3/4 IN, Tube (ips) Size: 3/8 IN, Installation Torque: 240 IN-LB, Rebar Size: #5 (5/8 IN) - #6 (3/4 IN), Width: 2-1/8 IN
