Red Dot 2IH5-2 5-Hole 2-Gang 3/4 Inch Hubs Raintight Device Box

Manufacturer: ABB Thomas & Betts | Catalog # 2IH5-2 | Codale Part # 106304

$1,092.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
454 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 5 Outlets with 2 on Top and Bottom and 1 on Back

Technical Information

Applications
Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
Material
Aluminum
Number of Gangs
2 Gang
Type
Device Boxes, Covers & Accessories

Manufacturer Information

Family Brand Name
Red Dot

General Product Info

Color
Silver
Finish
Powder Coated
Product UPC
04226939438

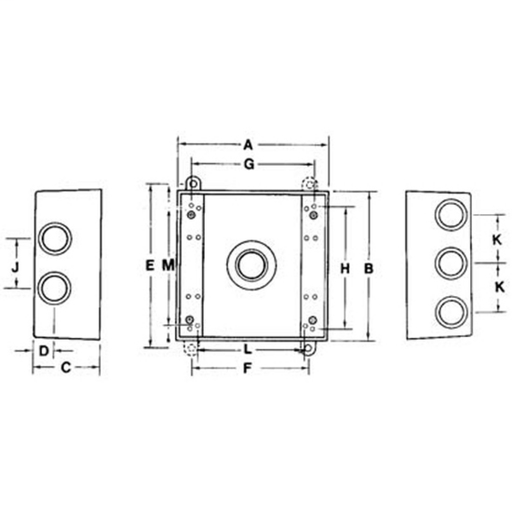

Dimensions

Height
5 Inch
Width
9-3/4 in
Codale Part No.
106304
Color
Silver
Finish
Powder-Coated
Material
Die Cast Aluminum
Product Long Description
Two Gang Universal Weatherproof Box, 31.8 Cubic Inches, Hub Size 3/4 Inch, Silver, Aluminum, 5 Outlets with 2 on Top and Bottom and 1 on Back
  • Junction box for branch conduits
  • Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
  • Accessible wiring chamber provides a convenient location to maintain or change a system, pull conductors and make splices
  • UL
  • Rain tight when used with appropriate Red Dot covers.
  • Die Cast construction and industrial design combine to produce a rugged protective enclosure for devices.
  • Securely fastened mounting plates reduce costly call backs
  • Convenient mounting lugs for a variety of mounting methods
  • Clean cover edges provide good gasket sealing.
  • Precision cast and machined surfaces permit safer wire pulling.
  • Clear UL and cubic content markings speed approval by inspectors
  • Alloy A380 aluminum, certified zinc alloy and stainless steel springs provide increased corrosion resistance
