Hubbell Wiring Devices HBL7101C 20 Amp 250 Volt 2-Pole 4-Wire NEMA L2-20R Black and White Locking Connector Body

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7101C | Codale Part # 110413
$30.79/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
2 available

For Delivery

Order by Wednesday 5:00pm MT for delivery Thursday
Out of stock, call for availability
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page Installation Instructions
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.

Technical Information

Applications
Heavy Duty Industrial
Conductor Size
12 - 10 AWG
Connection Type
Pressure Screw Terminal
Current
20 A
Material
Composite
Number of Conductors
2-Wire Non-Grounding
Number of Poles
2 Pole
Number of Wires
2

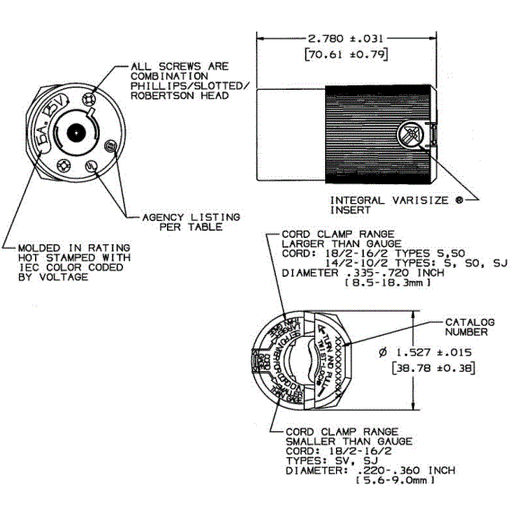

Size
1.53 in x 1.53 in x 2.78 in
Standard
Fed.Spec.W-C-596
Tc Connection
Pressure Screw Terminal
Temperature Rating
75 C Maximum Continuous, -40 C Minimum Continuous without impact, -25 C with Impact
Type
Insulated, Standard, 2-Pole
Voltage
250 Volt
Wire Size
18-10 AWG

Manufacturer Information

Family Brand Name
Hubbell Wiring Device Kellems
Sub Brand
Twist-Lock, Insulgrip

General Product Info

Color
Black and White
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358517700
Weight
0.15 lb

Dimensions

Height
1.67 Inch
Length
1.53 Inch
Width
1.53 in

Certifications and Compliance

Country of Origin
USA
Amperage Rating
20 A
Application
Heavy Duty Industrial
Codale Part No.
110413
Color
Black, White
Current Rating
20 A
Dielectric Strength
Withstands 2,000V minimum
Enviromental Conditions
Indoor Dry Unless Protected By Additional Means
Height
2.78 in
Insulation Material
Insulated Body
Length
1.53 in
Material
Nylon

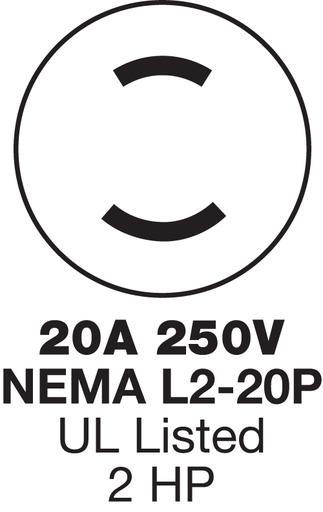

NEMA Rating
L2-20P
Number of Poles
2-Pole
Number of Wires / Conductors
2-Wire
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Product Long Description
Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black and White Nylon.
Size
1.53 in x 1.53 in x 2.78 in
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Type
Connector Body
UNSPSC
39121421
Voltage Rating
250 VAC
Weight
0.15 lb
Width
1.53 in
Wire Size
#18 AWG to #10 AWG
