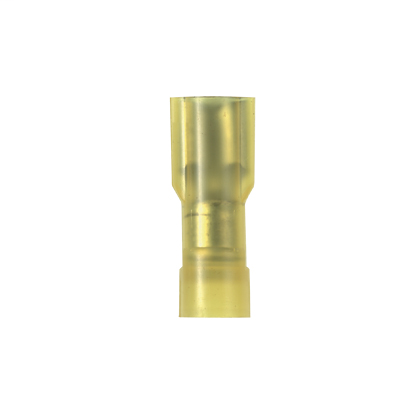

Product image for Panduit DNF10-250FI-L Female Disconnect, Nylon Fully Insulated, 12-10AWG, .250" x .032" Tab
Image thumbnail 0
Image thumbnail 1
Email

Panduit DNF10-250FI-L Female Disconnect, Nylon Fully Insulated, 12-10AWG, .250" x .032" Tab

Manufacturer: Panduit | Catalog # DNF10-250FI-L | Codale Part # 116110
$265.96/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
400 available

For Delivery

Not in local stock *
Check your local branch
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
The DNF10-250FI-L Pan-Term™ Disconnect is a fully insulated female disconnect with a funnel entry and metal collar. The internal wire stop assures proper wire insertion length for a higher quality connection. Barrel serrations assure good wire contact and maximum tensile strength. Funnel entry design allows for faster wire insertion and lower installed cost.

Technical Information

Barrel Type
Grip Sleeve
Color Coding
Yellow
Insulation Material
Nylon
Material
Brass
Max Operating Temperature
105 degrees C
Standard
CSA,E2186,UL
Tab Size
6.3 x 0.8 mm
Tc Connection
Funnel
Temperature Rating
105 degrees C
Type
Loose-Piece
Voltage
600 Volt
Wire Size
12-10 AWG

Packaging

Pkg Qty
50

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983826285
Color
Yellow
Finish
Tin Plated
Product UPC
07498382628
Weight
0.2600 lb

Dimensions

Height
0.27 Inch
Overall Length
0.95 in
Width
0.36 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: UL 310, CSA 22.2 No.153
