BUR YGHP34C26 250-500 TO 1/0-2/0 GR

Manufacturer: Hubbell-Burndy | Catalog # YGHP34C26 | Codale Part # 133951

$59.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
24 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

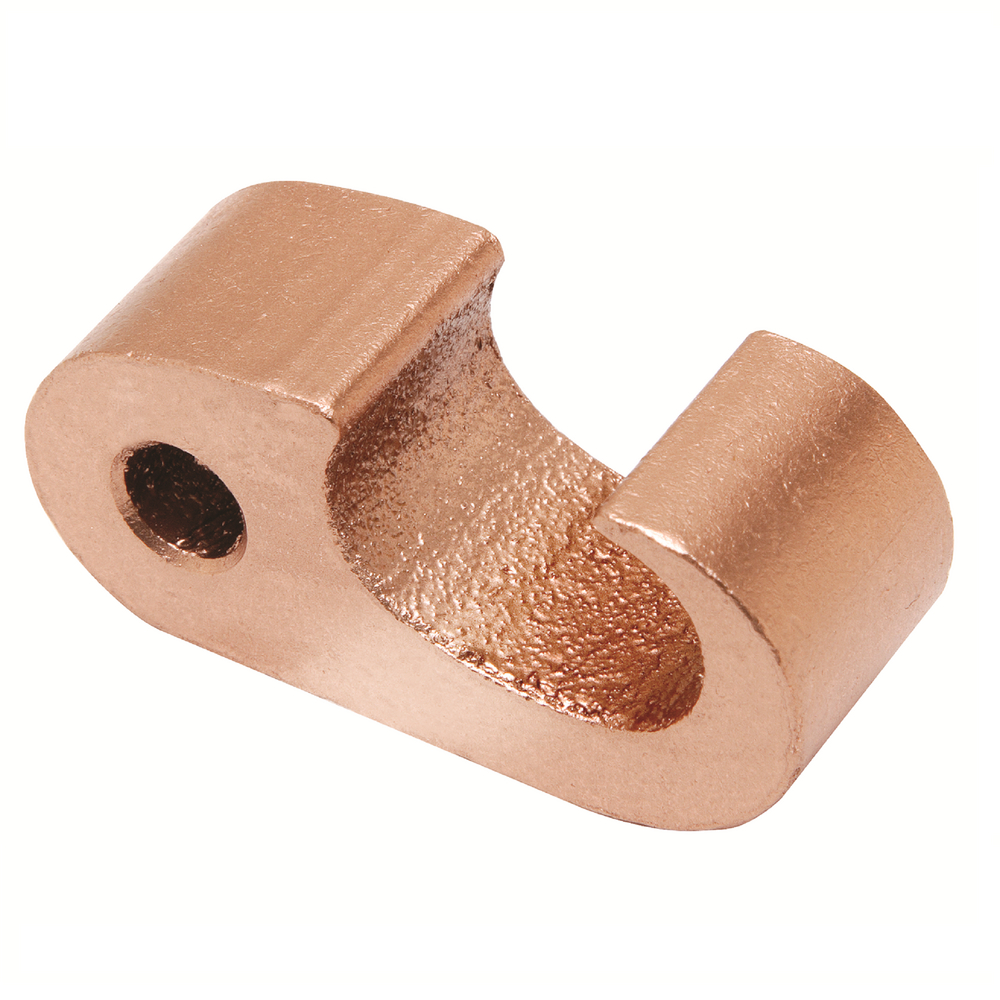

Cu Compression Ground Rod Connector, 1/0 Str - 2/0 str, 5/8" - 3/4" Rod Dia.

Technical Information

Applications
Direct Burial in Earth and Concrete
Conductor Size
Run: 250, 350, 500 KCMIL
Connection Type
Tap
Material
Copper
Plated?
No
Plating Type
Unplated
Size
0.75 IN Length
Tap Size
2/0, 1/0 AWG
Type
Taps

Manufacturer Information

Family Brand Name
Burndy
Sub Brand
Hytap

General Product Info

Product UPC
78181022096

Dimensions

Height
2.57 Inch
Length
3/4 Inch
Width
1.37 in

Certifications and Compliance

Country of Origin
USA
CSA
Yes
Application
For Direct Burial In Earth And Concrete
Codale Part No.
133951
Connector Type
Tap
Material
Copper
Product Long Description
Cu Compression Ground Rod Connector, 1/0 Str - 2/0 str, 5/8" - 3/4" Rod Dia.
Sub Brand
HYTAP
Type
Taps
  • Irreversible Compression Ground Tap Figure 6 Can Be Used As A Tap Connector Or As A Tap Splice Connector, Four Die Sets And Eight Connectors Can Accommodate A Conductor Range From #8 AWG Solid Through 500 KCMIL Plus 1/2 , 5/8 And 3/4 IN Copper Bonded Ground Rods, UL467 Listed, Acceptable For Direct Burial In Earth And Concrete, Prefilled With PENETROX Compound And Strip Sealed, Tools, Die Set Catalog Number, And (number Of Crimps): HYPRESS: Y750, PAT750-18V Tool, PU998 Die, (1), Y45 Tool, PU998 Die With PT6515 Adapter, (1), S998 Die, (1), Y46 Tool, PU998 Die With PUADP-1 Adapter, (1), P998 Die, (1), Ground Rod Size: 5/8 - 3/4 IN, Rebar Size: #5 - #6, Die Index: 998 Element A, Conductor Type: Run: Commercial Stranded Copper, Rebar, Ground Rod, Tap: Commercial Stranded Copper, Shape: 6, Conductor Size (run - Range): 250 - 500 KCMIL, Conductor Size (tap Range): 2/0, 1/0 AWG
