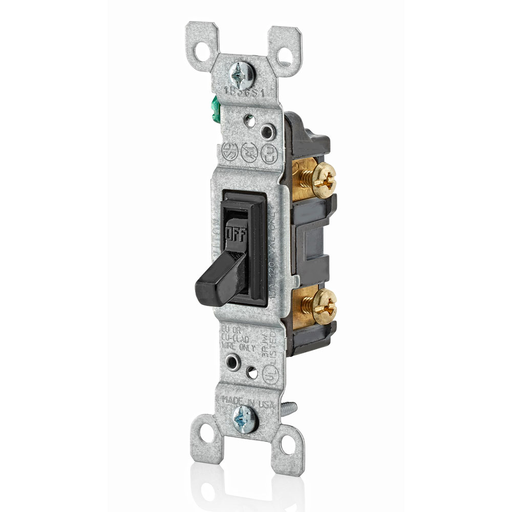

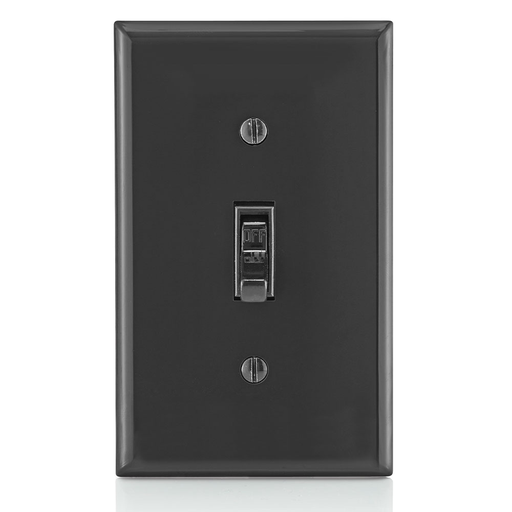

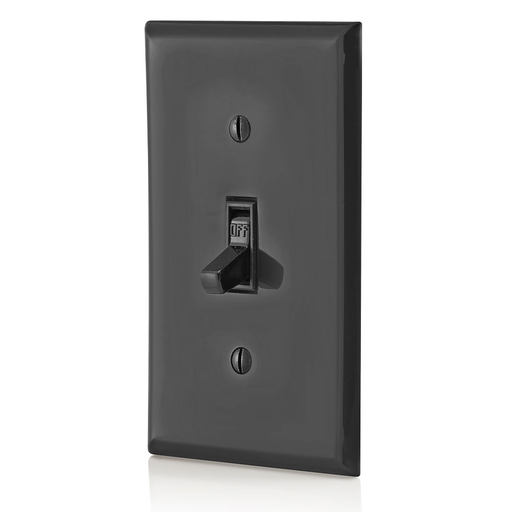

Leviton 1451-2E 120 VAC 15 Amp 1-Pole 1/2 Hp Black Thermoplastic Grounding Framed Toggle Quiet Switch

Manufacturer: Leviton | Catalog # 1451-2E | Codale Part # 1395844
$2.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120 Volt, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired, - Black

Technical Information

Action
SP
Actuator
Cam
Amperage
12 Amp
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Push-In And Side Wired
Contact Rating
120 V
Grounding
Grounding
Horsepower
1/2 hp
Insulation Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
1 Pole
Operating Temperature
-40 To 65 degrees C
Size
4.20 H x 1.31 W x 11 D IN
Standard
CSA,UL
Tc Connection
Push-In and Side Wired
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Single-Pole AC Quiet Switch
Voltage
120 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL SWITCHES

General Product Info

12-Digit UPC
078477135587
Color
Black
Environmental Conditions
Flammability (Rated V-2 Per UL94)
Product UPC
07847713558
Weight
0.0900 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
USA
Features
  • Faster installation with combination of side wiring and Quickwire push-in wiring
  • Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
  • Impact-resistant, durable thermoplastic toggle and frame
  • Backed by a Limited Two-Year Warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Levitons traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Color Variations
  • Brown
