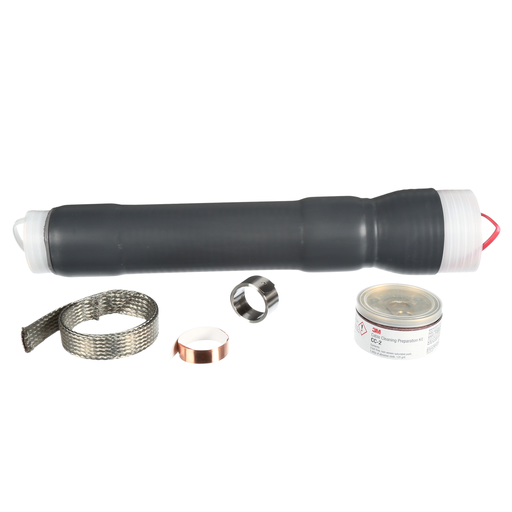

Product image for 3M 7695-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit
Image thumbnail 0
Image thumbnail 1
Email

3M 7695-T-150 Cold Shrink 3 Terms/Kit Non-Skirted Termination Kit

Manufacturer: 3M | Catalog # 7000006105 | Codale Part # 148805
$1,961.97/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page MDM Safety Data Sheet
3M™ Cold Shrink QT-III Termination Kits offer easy installation and reliable performance when terminating indoor and outdoor medium voltage cable. The Hi-K stress control design delivers excellent BIL performance and lower surface stress, resulting in a more compact termination. The 3M™ Cold Shrink QT-III Termination Kit 7695-T-150 has a conductor size range for 5 kV: 700-1500 kcmil, 8 kV: 600-1250 kcmil, 15 kV: 500-1000 kcmil, 25/28 kV: 250-800 kcmil and 35 kV: 3/0 AWG-600 kcmil.

Technical Information

Applications
For Terminating Solid Dielectric Shielded Power Cable, Tape Shield, Wire Shield and UniShield® Constructions, Free-Hanging or Bracket-Mounting Arrangements, Compact Design Provides for Easier Installation in Restricted Spaces, Indoor and Protected Areas
Cable Type
Tape Shield; UniShield(R); Wire Shield
Conductor Size
3/0 AWG-1500 kcmil
Indoor Outdoor
Indoor Non-skirted
Material
Rubber
Type
QT-III
Voltage
892.857/5,000/8,000/15,000/35,000 Volt

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007417798
Product UPC
05400741779
Used With
1.05 - 1.8 in Cable, QL2-A-350-750, QL2-A-4/0-600 Lug
  • Non-tracking, molded, silicone rubber insulation offers durability
  • High dielectric-constant material regulates the distribution of electric field stress
  • Suitable for indoor applications
  • Includes 3 non-skirted, 1-piece, 3-phase, cold shrink terminations
  • Provides a void-free seal to tape shield, wire shield and UniShield® power cables
