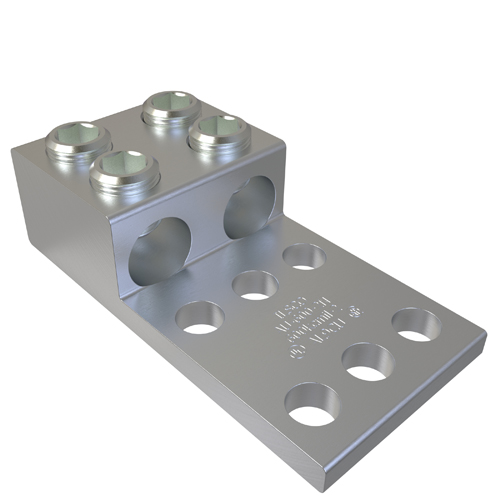

Ilsco AU-600-2N Aluminum Mechanical Lug, Conductor Range 600-2, 2 Ports, 6 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # AU-600-2N | Codale Part # 1551458
$76.86/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
ILSCO Mechanical Lug, Two Conductor, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,6 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, Copper/Aluminum Primary Conductor 600 kcmil - 2 Str, 2 conductors, 2 ports/wireways, Drive Type Main 1/2 Internal Hex, rated for 35 kV, primary color Silver, 1 poles,

Technical Information

Applications
For Aluminum and Copper Conductor
Conductor Material
Aluminum,Copper
Conductor Size
2 AWG-600 kcmil
Conductor Type
Aluminium, Solid, Stranded, Copper
Connection Type
Mechanical
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
1-3/4 in
Number of Conductors
2
Number of Holes
6 Hole
Standard
UL File Number: E6207,UL Specifications: UL 486A-B,CSA File Number: LR-29601
Tc Connection
Mechanical
Temperature Rating
90 degrees C
Type
Dual-Rated
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
ILSCO

General Product Info

12-Digit UPC
783669005776
Color
Silver
Finish
Tin Plated
Product UPC
78366900577
Weight
0.986 lb

Dimensions

Height
1-1/2 Inch
Length
5-1/2 Inch
Width
2.75 in
