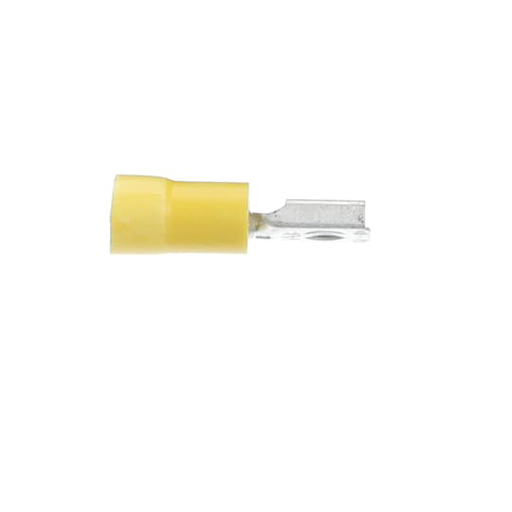

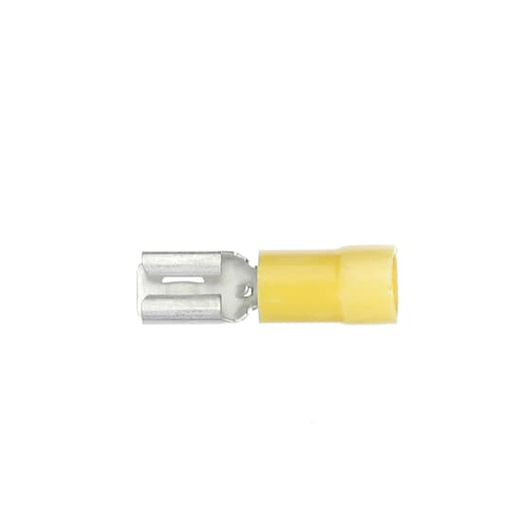

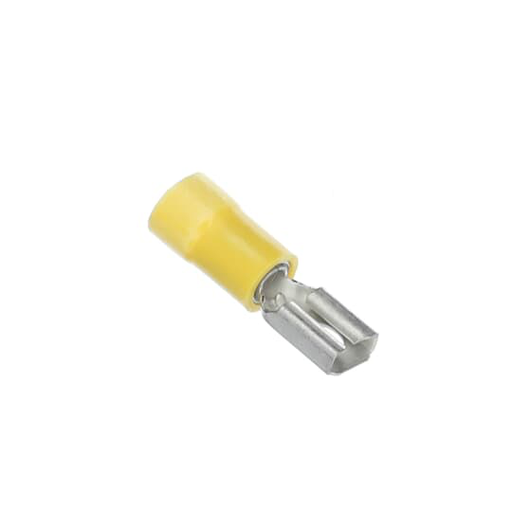

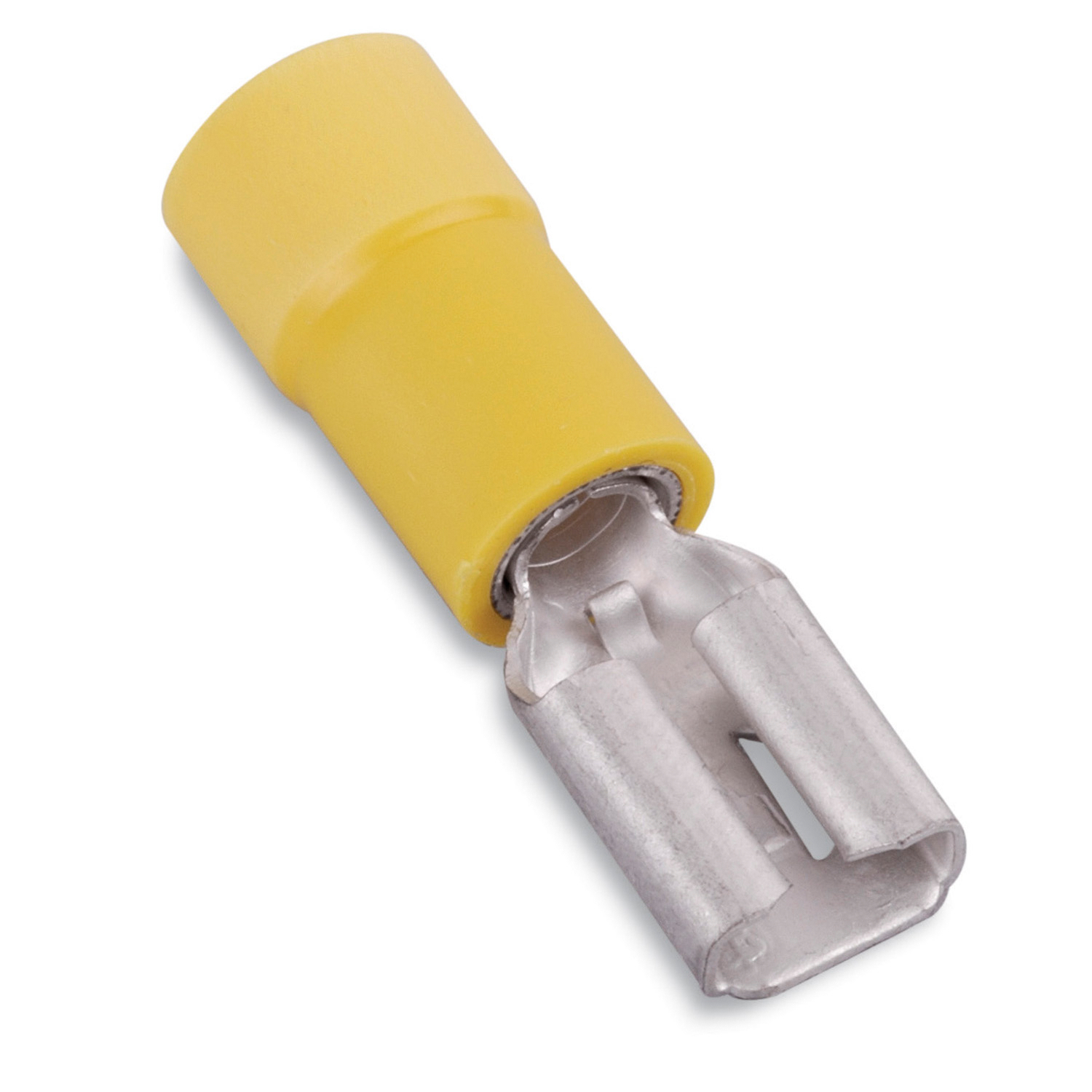

Thomas & Betts 10RC-250F Vinyl Self-Insulated Female Disconnect - 12-10, .250x.032tab

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-250F | Codale Part # 1568352

$144.99/c (100 ea)
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Vinyl-Insulated Female Disconnect, Length 1.03 Inches, Width .29 Inches, Maximum Insulation .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Conductor Size
10-12 AWG
Disconnect Type
Female - 250 Series
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Brass
Standard
UL E66716
Temperature Rating
105 C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Yellow
Finish
Electro-Tin Plated
Product UPC
78621080052
Used With
Round Conductors

Dimensions

Length
1.03 Inch
Thickness
.04 in
Codale Part No.
1568352
Color
Yellow
Disconnect Type
Female - 250 Series
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Brass
Product Long Description
Vinyl-Insulated Female Disconnect, Length 1.03 Inches, Width .29 Inches, Maximum Insulation .250, Tab Size .250x.032, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • UL
  • CSA
  • Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.
