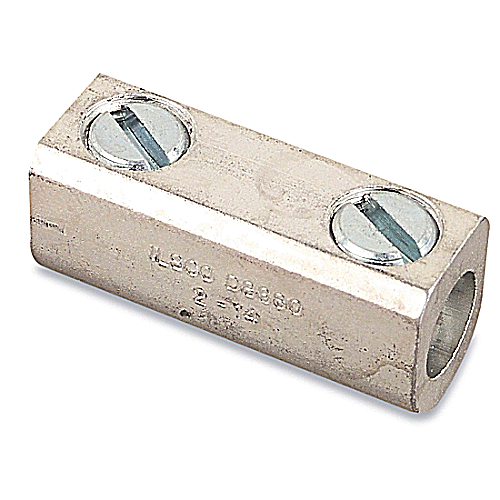

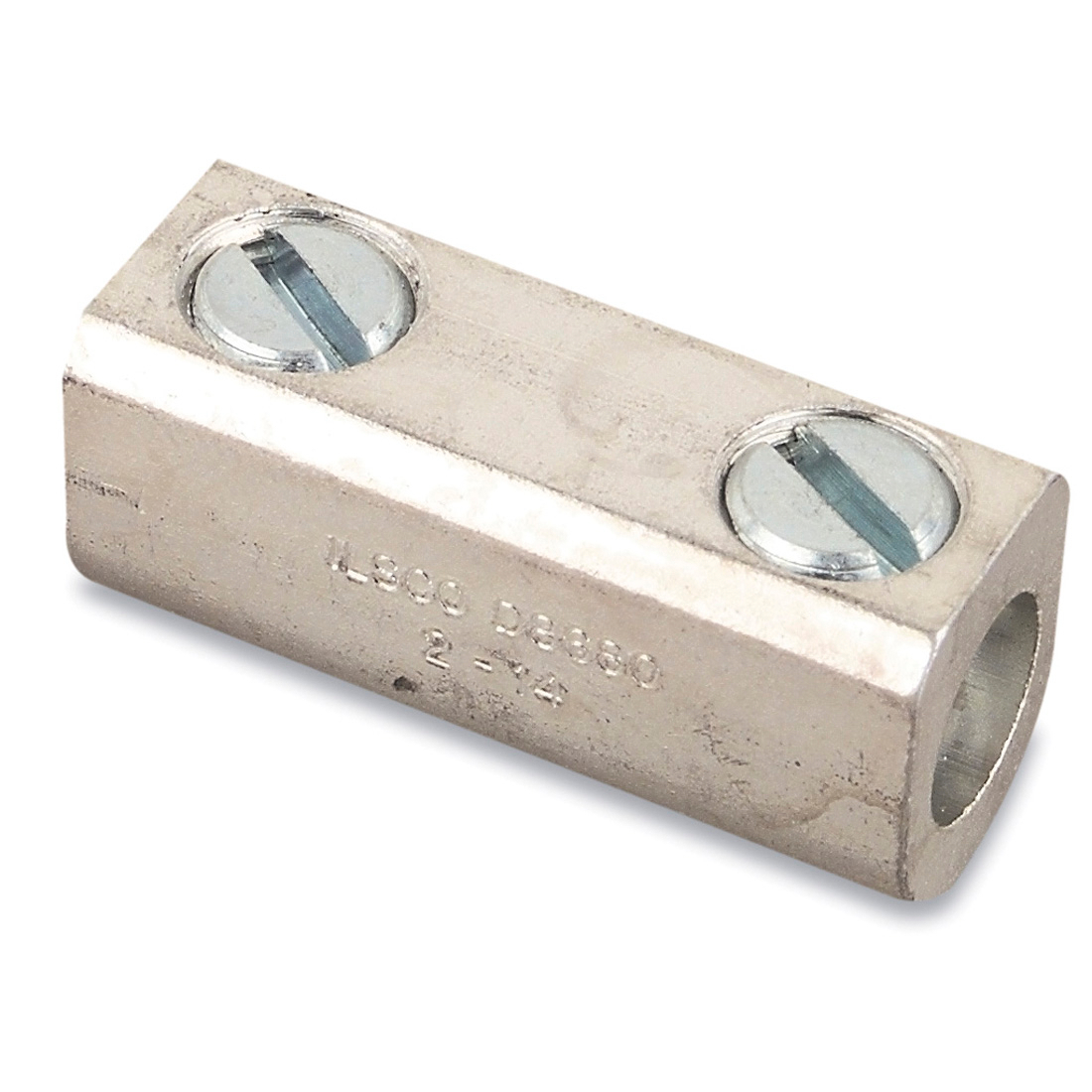

Blackburn ASR1114 Extruded Aluminum Splice

Manufacturer: ABB Thomas & Betts | Catalog # ASR1114 | Codale Part # 1645604
$651.95/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
53 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 1/0 Str., Min 14 AWG

Technical Information

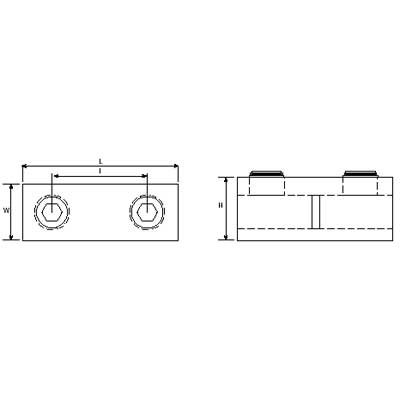

Blade Dimensions
1-1/2 in L x 39/64 in W x 23/32 in H
Conductor Size
1/0 AWG Stranded - 14 AWG
Conductor Type
Copper and Aluminum
Material
Aluminum
Standard
UL E9809
Type
Dual-Rated

Manufacturer Information

Family Brand Name
Blackburn
Sub Brand
Blackburn

General Product Info

Finish
Tin Plated
Product UPC
78378613322
Brand Name
Blackburn
Codale Part No.
1645604
Conductor Range
1/0 Str-14 AWG
Finish
Tin Plated
Material
Aluminum
Product Long Description
Type ASR-ALCUL Splice Reducer with Solid Barrier Wire Stop for Conductor Range Max 1/0 Str., Min 14 AWG
Type
Dual-Rated
