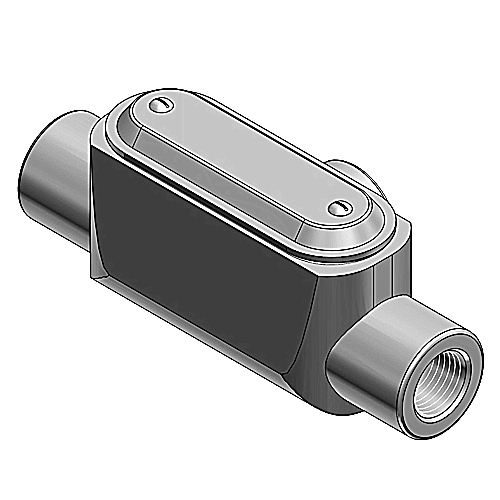

Ocal T67-G 2 Inch PVC Coated Gray Iron Type T Form7 Rigid Conduit Body and Cover

Manufacturer: ABB Ocal | Catalog # T67-G | Codale Part # 3224132

$419.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
9 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
2 in. Dark Gray PVC Coated Type T Form 7 Gray Iron Conduit Body and Cover.

Technical Information

Applications
Act As Pull Outlets for Conductors Being Installed
Hub Size
2 in
Material
Iron
Size
2 in
Trade Size
2 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Family Brand Name
Ocal

General Product Info

Color
Gray
Finish
PVC Coated
Product UPC
70450841054

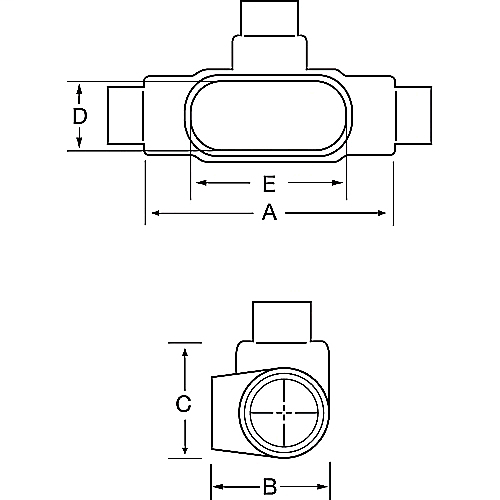

Dimensions

Height
4-1/4 Inch
Length
9-1/2 Inch
Width
3.2 in
Codale Part No.
3224132
Color
Dark Gray
Finish
PVC Coated
Material
Gray Iron
Product Long Description
2 in. Dark Gray PVC Coated Type T Form 7 Gray Iron Conduit Body and Cover.
  • CSA
  • UL
  • Provide taps for branch conduit runs
  • Make 90° bends in conduit runs
  • Connect conduit sections
  • Act as pull outlets for conductors being installed
  • Provide openings for making splices and taps in conductors
  • Provide for access to conductors for maintenance and future system changes
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
