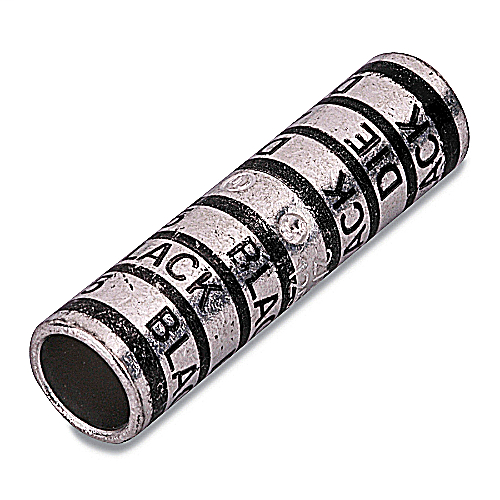

Thomas & Betts 54810 Copper 2-Way Splice Connector - Long Barrel - Black - 2/0AWG

Manufacturer: ABB Thomas & Betts | Catalog # 54810 | Codale Part # 3225684

$721.95/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
46 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Copper Two-Way Splice, Long Barrel, Max 35kV, 2/0 AWG, 275/24, Length 2.13 Inches, Tin Plated, Die Code 45, Die Color Code Black

Technical Information

Conductor Size
2/0 AWG
Contact Material
Copper
Insulated?
No
Material
Copper
Type
2 Way, Long Sleeve
Voltage
600 Volt
Wire Size
00 AWG

Manufacturer Information

Family Brand Name
Color-Keyed
Sub Brand
Color-Keyed

General Product Info

Color
Black
Finish
Tin Plated
Product UPC
78621054810
Used With
Round Conductors
Brand Name
Color-Keyed
Codale Part No.
3225684
Color
Black
Finish
Tin-Plated
Insulation Material
None
Material
Copper
Product Long Description
Copper Two-Way Splice, Long Barrel, Max 35kV, 2/0 AWG, 275/24, Length 2.13 Inches, Tin Plated, Die Code 45, Die Color Code Black
Type
Splice Connector
Voltage Rating
600V
  • UL Listed for direct burial applications.
  • Two-way connectors provide high pullout values, are easy to insulate and provide a low-resistance connection of high quality and low installed cost.
