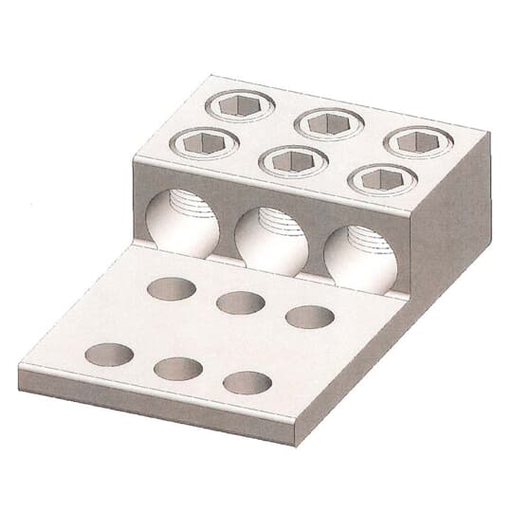

Blackburn ADR60-34D 4-Hole Mount 3 Conductors Dual Rated Mechanical Connector

Manufacturer: ABB Thomas & Betts | Catalog # ADR60-34D | Codale Part # 3232777
$14,774.94/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

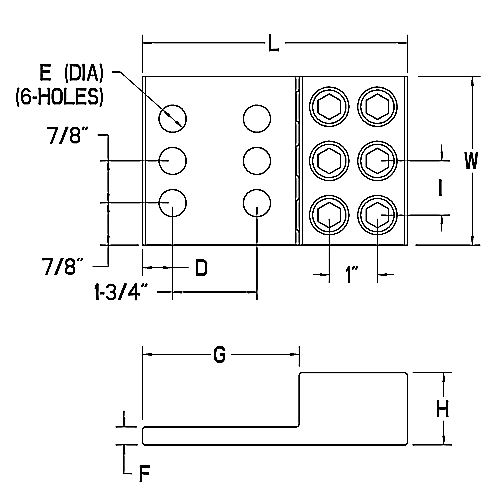

Type ADR-ALCUL Three-Conductor, Six-Hole Mount for Conductor Range Max 600 kcmil, Min 2 Str.

Technical Information

Conductor Size
2 AWG-600 kcmil
Conductor Type
Copper
Material
Aluminum
Number of Conductors
3
Standard
UL E9809
Type
Dual Rated

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610365
Finish
Tin Plated
Product UPC
78378661036
Weight
1.1250 lb

Dimensions

Height
1-1/2 Inch
Length
5-1/2 Inch
Width
3 in
Notes
  • UL 486B tested, AL9CU rated
  • NEMA spacing 1 3/4 inch centers.
  • Connectors accomodating conductors 600 kcmil and larger have double rows of set screws (D suffix).
Features
  • Easy Installation - no special tools required.
Certifications
  • UL
  • CSA
