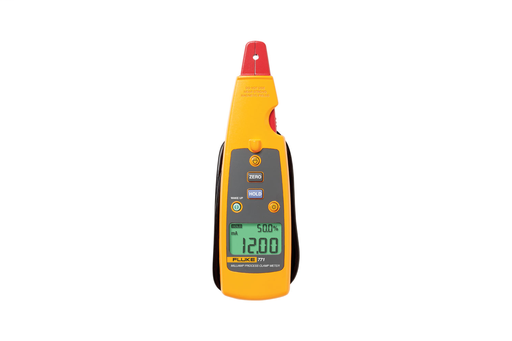

Fluke FLUKE-771 20 mA Clamp Meter

Manufacturer: Fluke Instruments | Catalog # FLUKE-771 | Codale Part # 3244865
$2,603.33/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Milliamp process clamp meters can measure mA signals without breaking the loop. The popular Fluke 771 mA Clamp Meter saves time by making fast, accurate measurements on 4-20 mA signal loops without breaking the circuit.

Technical Information

Accuracy
Range: 0 to 20.99 mA, Accuracy: 0.2% + 2 counts; Range: 21.0 mA to 100.0 mA, Accuracy: 1% + 5 counts
Amperage
100m Amp
Applications
Troubleshoot and repair 4-20 mA loops without breaking the loop or bringing down the system
Enclosure
Hard Plastic
Operating Temperature
-10 to 50 c
Type
Clamp Meter

Manufacturer Information

Brand
Fluke Corporation

General Product Info

12-Digit UPC
095969349697
Product UPC
09596934969
Weight
1.1600 lb
Other Useful Features
  • Captures and displays changing measurements with Hold function
  • Extends battery life with auto-off and backlight timeout
  • Dual backlit display with both mA measurement and percent of 4 to 20 mA span
  • Measurement Spotlight to illuminate hard to see wires in dark enclosures
  • Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically changes the 4 to 20 mA output for remote testing
Product Overview
  • Fluke 771 Milliamp clamp meter saves you time by measuring 4-20 mA signals without breaking the loop

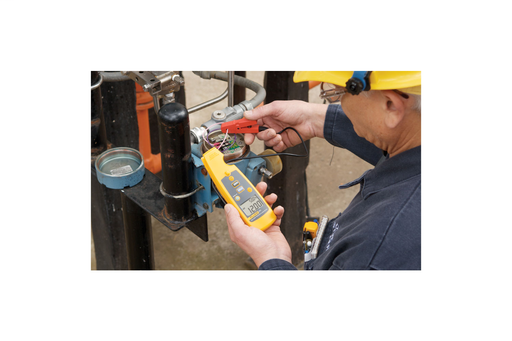

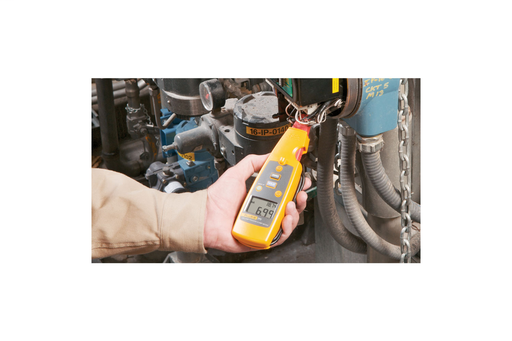

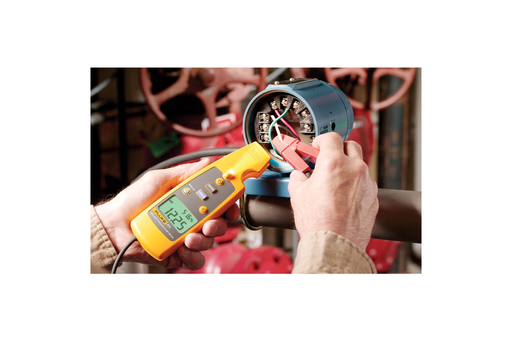

  • The Fluke 771 delivers all the basics. It measures 4-20 mA signals without \"breaking the loop\", allowing you to measure low level dc current while saving downtime and money. You can also use it to measure output signals from transmitters without breaking the loop when maintaining and troubleshooting process and automation equipment. This saves time and avoids disruption to the process. For more convenience, the detachable clamp can be attached to the wire you're testing while you move the meterconnected by the extension cableto a better viewing position. This is especially helpful for taking readings in tight locations.
Key Features
  • Loop calibrator that measures 4 to 20 mA signals without breaking the loop
  • Features best in class 0.2% accuracy
  • Delivers 0.01 mA resolution and sensitivity
  • Measures mA signals for PLC and control system analog I/O
  • Features a detachable clamp with extension cable for measurements in tight locations
Includes
  • Soft Carrying Case
  • Users Manual
