Ocal C37-G Ocal 1 Inch Gray Conduit Body

Manufacturer: ABB Ocal | Catalog # C37-G | Codale Part # 3256623

$140.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
6 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch

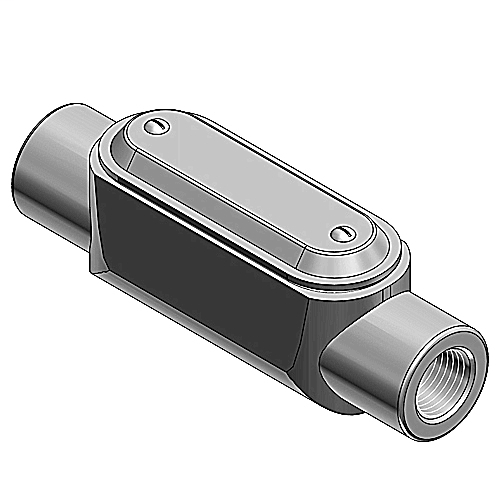

1 in. Dark Gray PVC Coated Type C Form 7 Gray Iron Conduit Body and Cover.

Technical Information

Applications
For Act as Pull Outlets For Conductors
Blade Dimensions
6.75 in L x 1.8 in W x 1.9 in H
Hub Size
1 in, 27 mm
Material
Iron
Size
1 in
Trade Size
1 Inch
Type
Type C

Manufacturer Information

Family Brand Name
Ocal
Sub Brand
Ocal

General Product Info

Color
Gray
Finish
Double Coated, PVC Coated
Product UPC
70450835852

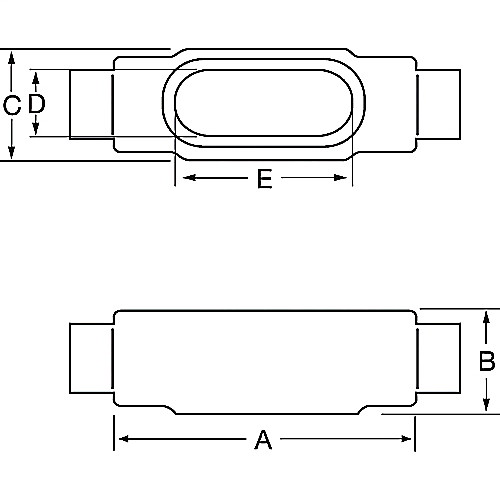

Dimensions

Height
1.9 Inch
Length
6-3/4 Inch
Width
1.8 in
Codale Part No.
3256623
Color
Dark Gray
Finish
PVC Coated
Material
Gray Iron
Product Long Description
1 in. Dark Gray PVC Coated Type C Form 7 Gray Iron Conduit Body and Cover.
  • Act as pull outlets for conductors being installed
  • Provide for access to conductors for maintenance and future system changes
  • Provide taps for branch conduit runs
  • Make 90° bends in conduit runs
  • Provide openings for making splices and taps in conductors
  • Connect conduit sections
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • UL
  • CSA
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
