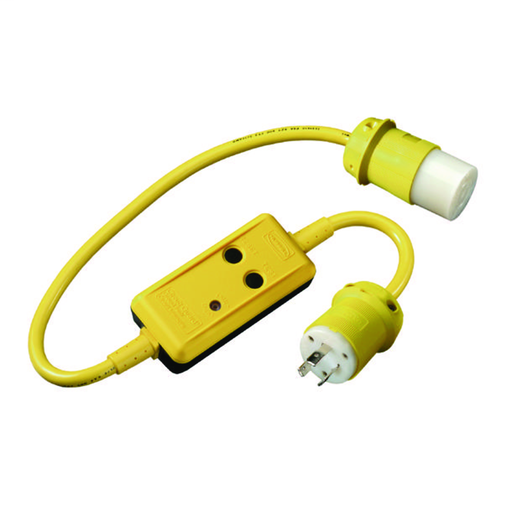

Product image for Hubbell Wiring Devices GFP3C20MTL 20 Amp 120 VAC 3 Foot Manual Set Portable Locking GFCI Line Cord
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

Hubbell Wiring Devices GFP3C20MTL 20 Amp 120 VAC 3 Foot Manual Set Portable Locking GFCI Line Cord

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFP3C20MTL | Codale Part # 3279073
$304.24/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Power Protection Products, GFCI Linecord, Commercial, Manual Set, 20A 120V AC, L5-20R, 3' Cord Length, 4-6 mA Trip Level, Yellow

Technical Information

Amperage
15 Amp
Applications
Line Cord with Male/Female Ends
Conductor Material
Copper
Conductor Size
14 AWG
Conductor Type
Copper
Cord Length
3 ft
Current
15 Amp
Frequency
60 Hz
Insulation Material
Elastomer
Number of Conductors
3
Operating Temperature
-30 To 150 degrees F
Standard
UL
Style
Manual Set
Temperature Rating
-35 degrees C to 66 degrees C
Type
Manual
Voltage
120 Volt

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585829210
Color
Yellow
Construction
Fabricated
Jacket Material
PVC
Product Series
Extra Heavy Duty
Product UPC
78358582921
Weight
1.6 lb

Dimensions

Height
3.1 Inch
Length
3 Foot
Outside Diameter
0.245 in
Width
4.300 in

Certifications and Compliance

Country of Origin
China
Features
  • Unit must be reset by pushing the reset button upon plug in and after loss of primary power
  • After a ground fault condition, unit must be reset by pushing the reset button
  • Ideal for applications where operator injury might occur if equipment were to restart after a power failure
