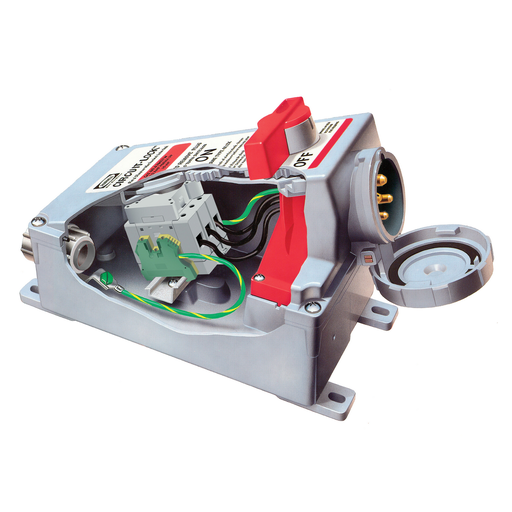

Hubbell HBL430MI7WR Pin & Sleeve IEC Reverse Service Circuit-Lock® Mechanical Interlock, 30A 3P4W, 3Ø 480V, IP67, NEMA 4X, 12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL430MI7WR | Codale Part # 3283271
$2,201.63/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Mechanically Interlocked Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Terminal Screws

Technical Information

Amperage
30 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
12-8 AWG
Current
30 Amp
Material
Thermoplastic
Mounting Type
Screw
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
UL
Style
Reverse Service
Tc Connection
Pressure Plate
Type
Mechanically Interlocked, Single, Reversed
Voltage
480 Volt
Wattage
14400 Watt
Wire Count
4
Wire Size
12-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585012599
Color
Red
Environmental Conditions
Watertight
Product Series
Lock,Unfused Circuit
Product UPC
78358501259
Weight
6.1 lb

Dimensions

Height
7.3 Inch
Length
7.9 Inch
Width
12.4 in

Certifications and Compliance

Certifications
CSA Certified,CSA Certified.,UL Listed,UL Listed
Country of Origin
Puerto Rico
Features
  • Captured neoprene gasket for a watertight seal
  • DIN rail mounted switch for easy installation and replacement
  • Solid pins for longer life and reliable electrical contact
  • Watertight
