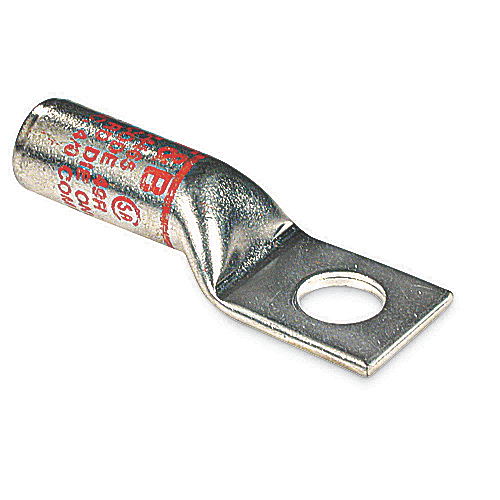

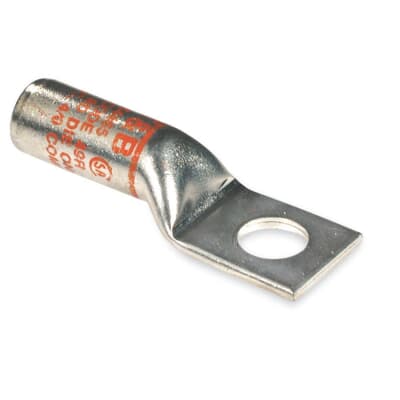

Thomas & Betts 54470 Method Lug

Manufacturer: ABB Thomas & Betts | Catalog # 54470 | Codale Part # 3289017
$1,279.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Primary Spec Sheet PDF Spec Sheet
Copper One-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size 4/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Code 54R, Die Color Code Purple Rounding

Technical Information

Barrel Length
Long
Barrel Shape
Standard
Barrel Type
Long, Straight
Cable Size
4/0 AWG
Conductor Size
4/0 AWG
Insulated?
No
Material
Copper
Number of Holes
1 Hole
Number of Studs
1
Temperature Rating
105 C
Tongue Angle
Straight
Tongue Width
Standard
Type
Non-Insulated, High Voltage
Voltage
15 kV
Wire Size
0000 AWG

Manufacturer Information

Family Brand Name
Color-Keyed
Sub Brand
Color-Keyed

General Product Info

Color
Purple
Finish
Tin Plated
Product UPC
78621054470
Shape
Round
Brand Name
Color-Keyed
Cable Size
4/0 AWG
Codale Part No.
3289017
Color
Purple
Insulation Material
None
Material
Copper
Product Long Description
Copper One-Hole High Voltage Lug, Long Barrel, Blind End, Max 15kV, Wire Size 4/0 AWG, 1/2 Inch Bolt Size, Tin Plated, Die Code 54R, Die Color Code Purple Rounding
Type
Long Barrel
Voltage Rating
Max 15kV
  • High conductivity wrought copper, tin plated. Cable Area Clearly Identified on Lug.
  • Recommended for up to 15KV applications, installed with standard T&B tools with special rounding dies.
  • The rounding die overlapped compressions provide a smooth round surface. This combined with the tapered barrel ends, addresses the controlling of potentially damaging electrical stresses of high voltages.
  • Cable Size: Concentric and compact strandings.
  • Cat No. TBM15500 Die Adaptor required for TBM15I tool.
