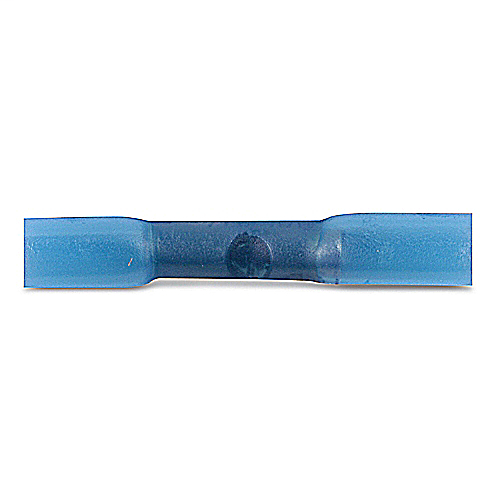

Thomas & Betts 2RBS14X Heat-Shrinkable Butt Splice - #16-14

Manufacturer: ABB Thomas & Betts | Catalog # 2RBS14X | Codale Part # 3298075

$299.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Heat Shrinkable Butt Splice, Length 1.50 Inches, Width .26 Inches, Maximum Insulation Diameter .200, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
16-14 AWG
Contact Material
Copper
Insulation Type
Heat-Shrinkable Polyolefin
Material
Copper
Temperature Rating
150 C
Type
Heat Shrinkable Butt Splice
Voltage
600 Volt

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Blue
Finish
Electro-Tin Plated
Product UPC
78621070327

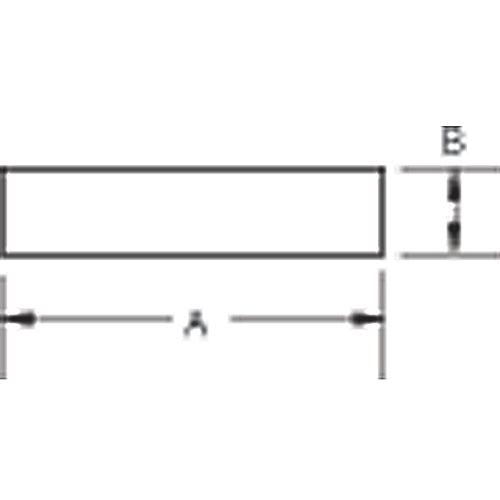

Dimensions

Overall Length
1-1/2 in
Brand Name
Sta-Kon
Codale Part No.
3298075
Color
Blue
Finish
Electro -Tin Plated
Material
Copper
Product Long Description
Heat Shrinkable Butt Splice, Length 1.50 Inches, Width .26 Inches, Maximum Insulation Diameter .200, Wire Range #16-#14 AWG, Color Blue, Copper, Tin Plated
Temperature Rating
150 Degrees C
Type
Splice Connector
Voltage Rating
600V
  • Self-insulated with heat-shrinkable polyolefin and internally coated sealant. Upon completed installation, a fully sealed connection is achieved to protect the joint against the degrading effects of galvanic action, corrosion, and environmental exposure.
