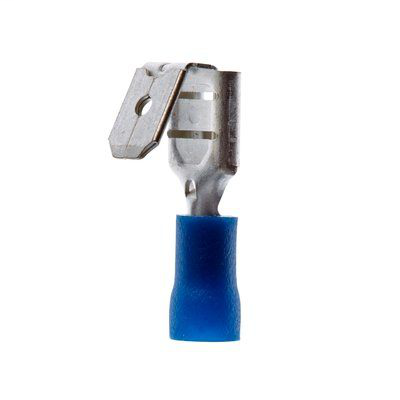

3M MVU14-250DMK MVU14-250DMK C-35-1

Manufacturer: 3M | Catalog # MVU14-250DMK | Codale Part # 3305083

$0.32/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
4 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Insulation Material
Vinyl
Material
PVC
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701790

Dimensions

Length
0.93 Inch
Overall Length
0.93 in
Thickness
0.032 in
Codale Part No.
3305083
Conductor / Wire Size
16 - 14 AWG
Length
0.93 Inch
Terminal Type
Disconnect
Thickness
0.032 Inch
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 16 to 14 AWG
  • Mates with 0.25-in wide female tab
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Allows for quick and easy disconnect of wires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • This male disconnect terminal offers excellent holding force
  • Blue vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 1000/case
