3M MNG14-10FBK MNG14-10FBK NYL INS

Manufacturer: 3M | Catalog # MNG14-10FBK | Codale Part # 3306403

$0.50/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
400 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Terminal Size
16 - 14 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701583

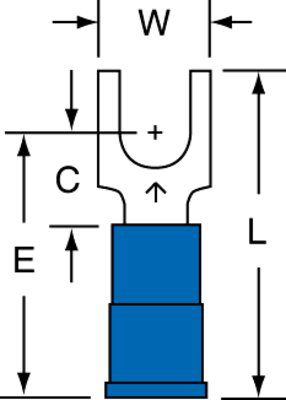

Dimensions

Length
0.86 Inch
Thickness
0.03 in
Width
0.3 in
Codale Part No.
3306403
Conductor / Wire Size
16 - 14 AWG
Length
0.86 Inch
Terminal Type
Fork
Thickness
0.03 Inch
Width
0.3 Inch
  • 3M™ Scotchlok™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures a positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • 3M™ Scotchlok™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Suitable for use in a terminal block
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 1000/case
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
  • Manufacturing Origin: USA
