3M MNG18-8FBK MNG18-8FBK NYL INS GR

Manufacturer: 3M | Catalog # MNG18-8FBK | Codale Part # 3306405
$0.44/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
22 To 18 AWG
Insulation Material
Nylon With Insulation Grip
Material
Nylon
Stud Size
8
Terminal Size
22 - 18 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701216

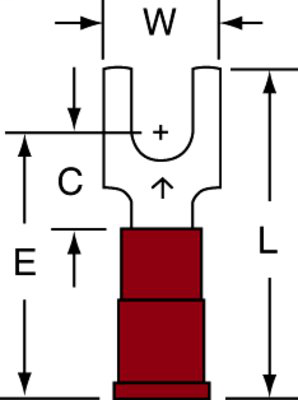

Dimensions

Length
0.84 Inch
Thickness
0.03 in
Width
0.3 in
Codale Part No.
3306405
Conductor / Wire Size
22 - 18 AWG
Length
0.84 Inch
Terminal Type
Fork
Thickness
0.03 Inch
Width
0.3 Inch
  • Block forks have the same strength as the standard fork, but are designed to use in a terminal block because their sides lie flat against the barrier portion of the terminal block.
