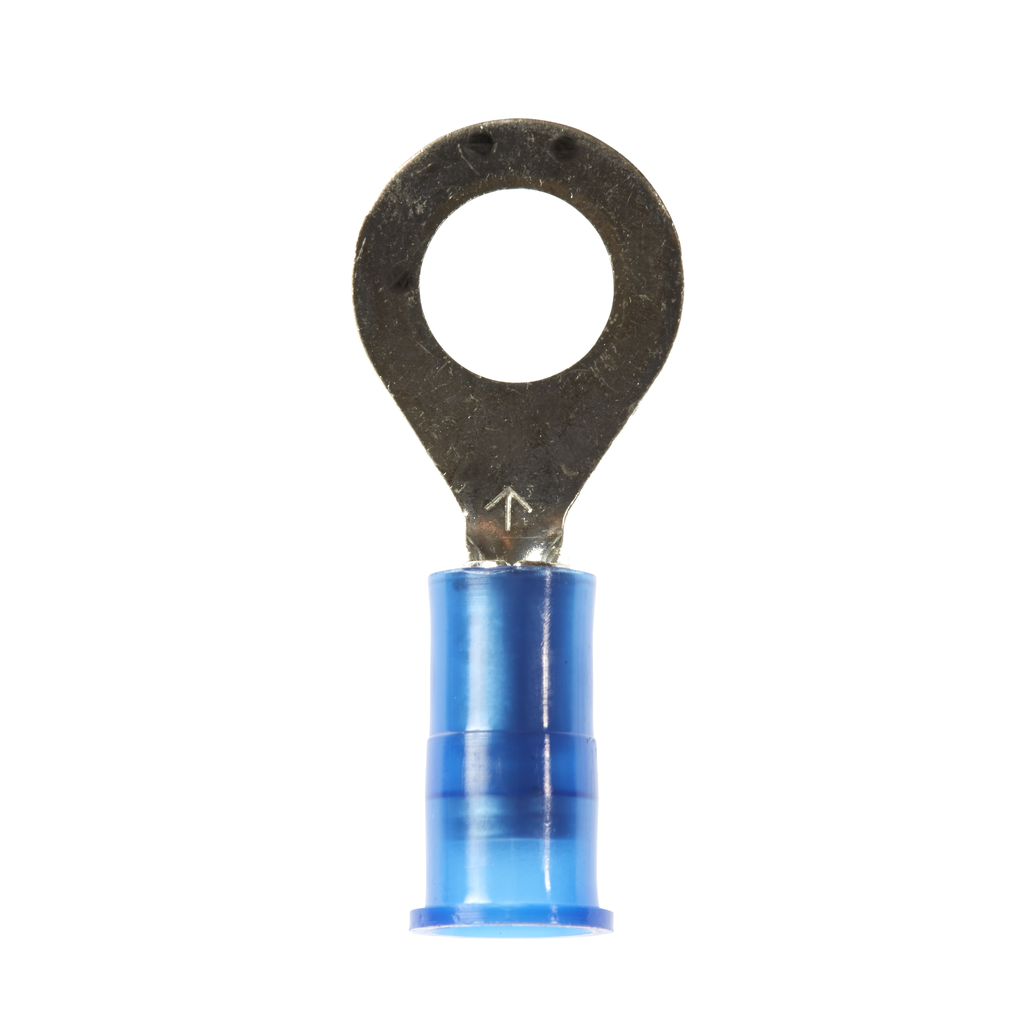

3M MNG14-14R/SK Nylon Insulated with Insulation Grip Ring Tongue Terminal

Manufacturer: 3M | Catalog # MNG14-14R/SK | Codale Part # 3306411
$0.70/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
491 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16 To 14 AWG
Insulation Material
Nylon With Insulation Grip
Material
Nylon
Max Operating Temperature
105 C
Stud Size
1/4 in
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Ring

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Color
Blue
Product UPC
05400701438

Dimensions

Length
1.09 Inch
Overall Length
1.09 in
Thickness
0.03 in
Width
0.47 in
  • 1000/case
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 16 to 14 AWG
  • Blue nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
