3M MNG18-250DMIK MNG18-250DMIK B-63

Manufacturer: 3M | Catalog # MNG18-250DMIK | Codale Part # 3306415

$0.65/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
220 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Diameter
0.145 in
Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
18 AWG
Insulation Material
Insulation Grip,Nylon
Material
Nylon
Terminal Size
22 - 18 AWG
Terminal Style
Fully Insulated
Terminal Type
Standard
Type
Disconnect

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400702302

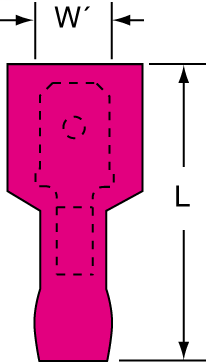

Dimensions

Diameter
0.3 in
Overall Length
0.95 in
Pad Width
0.25 in
Width
0.44 in

Certifications and Compliance

Country of Origin
USA
  • This male disconnect terminal offers excellent holding force
  • Allows for quick and easy disconnect of wires
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 22 to 18 AWG
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Mates with 0.25-in wide female tab
  • Red nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 1000/case
