3M 77-White-3x20ft Fire Retardant E

Manufacturer: 3M | Catalog # 77White-3x20ft | Codale Part # 3322919

$65.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
314 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Material
Intumescent Elastomer

Manufacturer Information

Family Brand Name
3M

General Product Info

Color
Gray
Product Type
Arc Protection Tape
Product UPC
05112860335

Dimensions

Length
20 Foot
Thickness
30 mil
Width
3 in
Codale Part No.
3322919
Color
Light Gray
Length
20 Linear Foot
Material
Intumescent Elastomer
Specifications
Consolidated Edison Co. Test EO-5343-14
Thickness
30 mil
Width
3 Inch

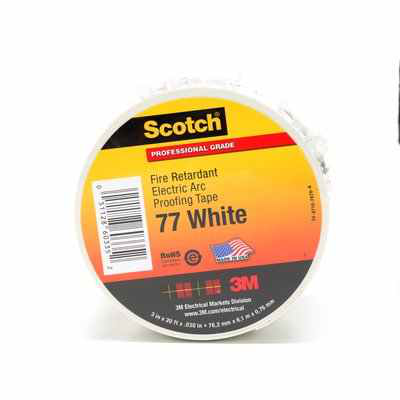

  • Scotch® Tape 77W is a 30-mil thick, premium-grade, flame-retardant, electric arc proofing tape. This tape is 600V-rated and is suitable to protect most types of electrical cables when exposed to potential failures in an adjacent cable. It is designed with a flexible unsupported elastomer, which makes it easy-to-apply and easy-to-remove for cable inspection.
  • Conformability offers virtually wrinkle-free wrapping with minimal effort
  • For protecting most types of electrical cables when exposed to potential failures in an adjacent cable
  • UL Listed and RoHS 2011/65/EU Compliant
  • Tape measures 3 in x 20 ft x 30 mil
  • Intumescent elastomer backing
  • 1 roll/carton, 10 rolls/case
  • Scotch® Flame-Retardant Tape 77W has an intumescent elastomer backing that generates a thick, insulating charred buildup when exposed to high temperatures. The tape has a specially formulated adhesive that expands in fire to form a thick, char buildup between the flame and the cable. This firewall acts as a heat shield and flame barrier to protect the nearby cables and accessories. The splicing, insulating tape offers fault-arc protection to cable accessories and adjacent wrapped cables. UL Listed and RoHS 2011/65/EU Compliant.
