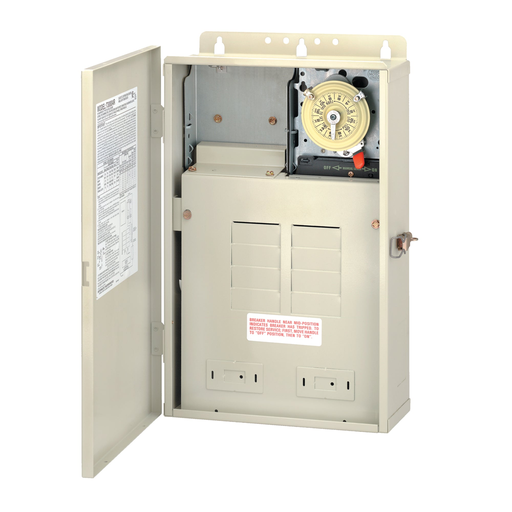

Intermatic T30004R NEMA 3R Load Center 240 VAC 60 Hz 100 Amp DPST Control System

Manufacturer: Intermatic | Catalog # T30004R | Codale Part # 3331474
$476.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Prop 65 Warning Prop 65 Warning Primary Spec Sheet
Can be used as a load center only, or add mechanisms or wiring devices for complete control systems.

Technical Information

Amperage
100 Amp
Applications
Distribution/Control Panel,Motor Control,Pump Control
Enclosure
Type 3R
Enclosure Rating
3R
Frequency
60 Hz
Input Voltage
208-277 V
Material
Metal
Max Operating Temperature
130 degrees F
Min Operating Temperature
-40 degrees C
Mounting Type
Wall Mount
Number of Circuits
1
Number of Phases
1 Phase
Operating Temperature
-40 To 130 degrees F
Power Consumption
3 W
Size
16-1/2 HEIGHT X 10-7/8 WIDTH X 4-1/2 DEPTH IN, 406 HEIGHT X 254 WIDTH X 114 DEPTH MM
Standard
CCSAus Certified
Switch Type
DPST
Type
Load Center
Voltage
240 VAC

Manufacturer Information

Brand
NA

General Product Info

12-Digit UPC
078275124356
Color
Beige
Environmental Conditions
Outdoor
Product UPC
07827512435

Dimensions

Depth
4-3/4 Inch
Height
16-7/8 Inch
Warranty Length
1 yr
Width
10.875 in

Certifications and Compliance

Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
Please see the Warning @ www.P65Warnings.ca.gov - Lead
Features
  • Eight breaker spaces
  • Reduces installation costs
  • Eliminates the need for additional service panels
  • Fits most of our hard-wired T100 mechanical and PE digital timers
  • Control two-speed pumps with the T30604R
  • Fully compatible with all electrical requirements for pool/spa installations
  • Load center dead front has two knockouts and one on the side for switches or GFCIs
  • Wiring devices may be installed in these load centers with the use of Standoffs, sold separately
  • NA
