3M MNG14-156DFIK-A MNG14-156DFIK-A

Manufacturer: 3M | Catalog # MNG14-156DFIK-A | Codale Part # 3331496
$0.80/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
305 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Material
Nylon
Terminal Size
16 - 14 AWG
Type
Disconnect

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05113898117

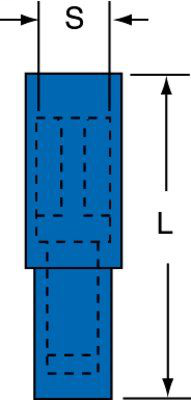

Dimensions

Overall Length
0.99 in
Codale Part No.
3331496
Conductor / Wire Size
16 - 14 AWG
Length
0.99 Inch
Terminal Type
Disconnect
  • Accommodates wire sizes 16 to 14 AWG
  • Mates with 0.156-in wide male tab
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Blue nylon-insulated, butted-seam barrel with a funnel-designed, seamless brass sleeve offers easy insertion of wires
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • 1000/case
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Allows for quick and easy disconnect of wires
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
