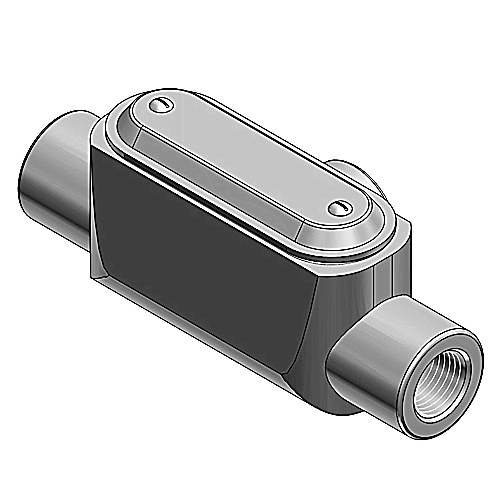

Ocal T27-G 3/4 Inch PVC Coated Gray Iron Type T Form7 Rigid Conduit Body and Cover

Manufacturer: ABB Ocal | Catalog # T27-G | Codale Part # 3332480
$129.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
17 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet
3/4 in. Dark Gray PVC Coated Type T Form 7 Gray Iron Conduit Body and Cover.

Technical Information

Applications
Act as Pull Outlets for Conductors Being Installed
Blade Dimensions
6.2 in L x 2 in W x 2.6 in H
Hub Size
3/4 in
Material
Iron
Size
3 in
Trade Size
3/4 Inch
Type
Form 7 Conduit Body

Manufacturer Information

Family Brand Name
Ocal
Sub Brand
Ocal

General Product Info

Color
Gray
Finish
PVC Coated
Product UPC
70450840997

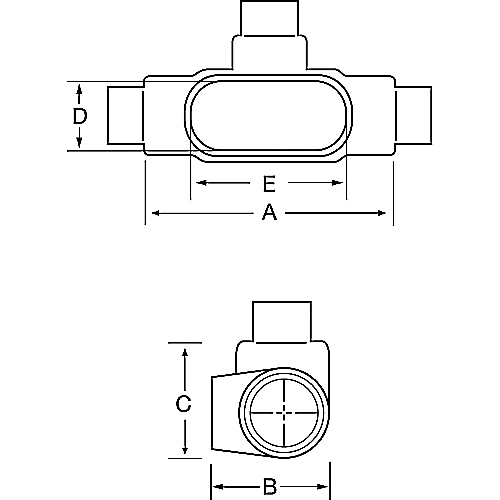

Dimensions

Height
2.6 Inch
Length
6.2 Inch
Width
2 in
Codale Part No.
3332480
Color
Dark Gray
Finish
PVC Coated
Material
Gray Iron
Product Long Description
3/4 in. Dark Gray PVC Coated Type T Form 7 Gray Iron Conduit Body and Cover.
  • Provide for access to conductors for maintenance and future system changes
  • Connect conduit sections
  • Act as pull outlets for conductors being installed
  • Make 90° bends in conduit runs
  • Provide taps for branch conduit runs
  • Provide openings for making splices and taps in conductors
  • Available in dark gray, white and light blue. Custom colors are also available upon request. Please contact Technical Services-888-862-3289
  • Dimensional values are of uncoated conduit bodies.
  • Bodies are designed with a flat back, allowing more cubic inch capacity. The flat back also keeps the body more stable during installation, requiring fewer conduit straps.
  • The conduit body and cover are double coated with a nominal .002 in. blue urethane on both the interior and exterior, before PVC coating is applied
  • Ocal pressure-sealing sleeves on all threaded hubs.
  • Ocal conduit bodies are shipped with a cover and encapsulated stainless steel screws.
  • A minimum of .040 in. PVC coating is bonded to the exterior.
  • Covers are coated with a molded flange to seal the conduit body while the conduit body is molded with a flat surface on its opening to seal with the cover.
  • UL
  • CSA
