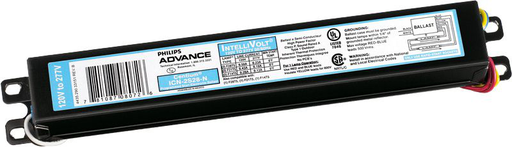

Advance ICN2S28N35I 120 to 277 VAC 50/60 Hz 28 W 2-Lamp T5 Electronic Ballast

Manufacturer: Signify Lamps | Catalog # ICN2S28N35I | Codale Part # 3351193

$68.04/ea
ea
Log in or register to view your price, purchase history, and more!
12 available

For Delivery

Not in local stock *
Check your local branch
Philips Advance Centium ballasts for T5 lamps at 120-277V are now available with our industry leading N-can at 9.5" x 1.3" x 1.0" or T-can at 14.17" x 1.18" x 1.06", which provides fixture manufacturers increased versatility in their newer generation fixture designs. These ballasts are compatible with all major energy-saving T5 linear lamps and have a variety of other features which makes them ideal for a variety of applications. The ballasts' programmed start ignition provides extended lamp life in frequent switching applications such as those where occupancy sensors are being used. They also feature lamp End-Of-Life (EOL) protection circuitry which safely removes power from the lamp at the end of lamp life.

Technical Information

Ballast Factor
1.028
Ballast Type
Electronic Fluorescent
Bulb Shape
T5
Conductor Size
18 AWG
Frequency
50/60 Hz
Input Voltage
120/277 V
Input Wattage
63-62 W
Lamp Type
Fluorescent
Lamp Wattage
28 W
Number of Lamps
2
Power Factor
0.98
Start Type
PROGRAMMED START
Total Harmonic Distortion
10
Type
Electronic Fluorescent
Voltage
120 Volt
Wattage
28 Watt
Wire Size
18 AWG
Wire Type
Solid

Manufacturer Information

Brand
Advance
Sub Brand
Centium

General Product Info

12-Digit UPC
781087080726
Housing Material
Metal
Product UPC
78108708072
Weight
0.850 lb

Dimensions

Height
1 Inch
Length
9-1/2 Inch
Width
1.300 in

Certifications and Compliance

Country of Origin
USA
Certifications and Standards
  • EU RoHS
  • ARRA
  • BAA
Features
  • Signify Electronics
  • UL, CSA, RoHS
