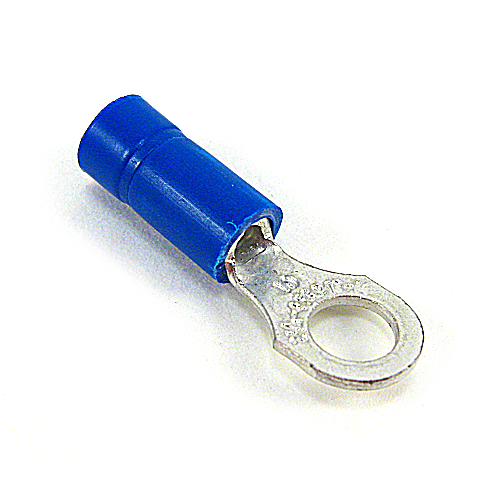

Thomas & Betts 14RB-38 18 to 14 AWG 3/8 Inch Stud Blue Electrotinned Copper Vinyl Insulated Ring Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 14RB-38 | Codale Part # 3368346
$98.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
200 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet
Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .54 Inches, Maximum Insulation .170, Bolt Hole 3/8 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
18-14 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Stud Size
3/8 in
Temperature Rating
105 C
Terminal Type
RB
Type
Short Sleeve
Voltage
600 Volt
Wire Size
18-14 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
78621080075
Used With
Round Conductors

Dimensions

Height
8.2 Inch
Thickness
.03 in
Width
10.3 in
Codale Part No.
3368346
Color
Blue
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Vinyl-Insulated Ring Terminal, Length 1.16 Inches, Width .54 Inches, Maximum Insulation .170, Bolt Hole 3/8 Inch, Wire Range #18-#14 AWG, Color Blue, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • CSA
  • UL
  • These terminals are self-insulated with a PVC insulation sleeve of extra length to give protection and relieve bending stress at wire's flex point. Brazed seam barrel is serrated to obtain high pull-out value.
