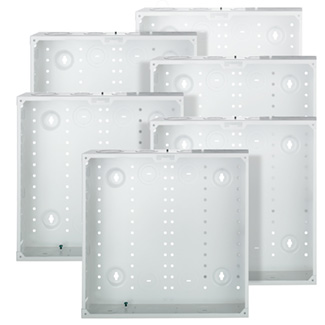

Product image for Leviton 47605-14G 14" Structured Media Enclosure Only, Job Pack, 14" H x 14.38" W x 3.85" D, Metal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Leviton 47605-14G 14" Structured Media Enclosure Only, Job Pack, 14" H x 14.38" W x 3.85" D, Metal

Manufacturer: Leviton | Catalog # 47605-14G | Codale Part # 3372151
$74.97/ea
ea
Log in or register to view your price, purchase history, and more!
58 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Installation / Instruction Manual MDM Safety Data Sheet
14-inch Structured Media Enclosures make running cable and managing media both simple and cost effective. They are designed to provide a central distribution consolidation point, and can be installed and concealed in a closet or behind a flat-screen display. Ideal for supporting home, classroom, and small office technologies, enclosures accommodate the distribution of voice, data, video, audio, security, and IT/AV control applications

Technical Information

Applications
Residential, Commercial
Cable Entry
Knockouts
Enclosure
Steel
Material
Steel
Mounting Type
Flush,Surface
Number of Gangs
4 Gang
Standard
CULus Listed (ANSI\UL 1863, ANSI\UL 985, ANSI\UL 1023, CAN\CSA C22.2 No. 182.4-M90),TIA (TIA-568-C, TIA-570-B, TIA-607)
Type
Enclosure

Manufacturer Information

Brand
Leviton
Sub Brand
Structured Media

General Product Info

12-Digit UPC
078477325605
Color
White
Product UPC
07847732560
Weight
5.4830 lb

Dimensions

Depth
3.6 Inch
Height
14 Inch

Certifications and Compliance

Country of Origin
Mexico
Features
  • Bottom cutout pattern accommodates AC and DC power modules
  • Mounting slots on the enclosure simplify adjustment for different drywall depths (1/2 inch, 5/8 inch, and 3/4 inch)
  • Enclosures may be surface or flush mounted
  • Optional Flush-Mount Cover overlaps 3/4 inch to hide possible uneven drywall cuts around the enclosure
  • Ships with a cardboard insert to help prevent drywall debris or paint overspray
  • Multiple knockouts on the top and bottom support conduit up to two inches in diameter and facilitate cable routing and entry
  • Self-healing foam grommets protect cable bundles and prevent dust from entering the enclosure
  • Optional ceiling-mount kit available for installing in non-plenum drop-ceiling applications
  • Mounting brackets (sold separately) can accommodate an array of devices
