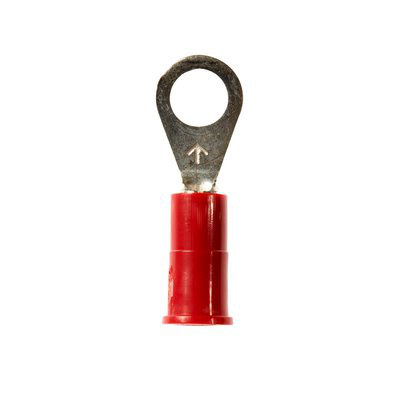

3M MV18-10R/LX 100/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # MV18-10R/LX | Codale Part # 3384018

$0.80/ea
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days

Technical Information

Barrel Diameter
0.07 in ID
Barrel Length
0.45 in
Barrel Type
Brazed Seam
Conductor Size
22-18 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105 C
Stud Size
#10
Temperature Rating
-40 to 105 C
Terminal Size
22 - 18 AWG
Type
Ring
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Red
Finish
Tin Plated
Product UPC
05112858732

Dimensions

Length
0.93 Inch
Overall Length
0.93 in
Width
0.31 in
Codale Part No.
3384018
Color
Red
Conductor / Wire Size
22 - 18 AWG
Length
0.93 Inch
Material
Plastic
Terminal Type
Ring
Thickness
0.03 Inch
Type
Standard
Width
0.31 Inch
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 100/carton, 500/case
  • Accommodates wire sizes 22 to 18 AWG
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Red vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
