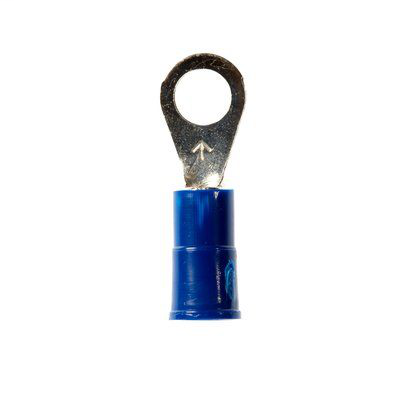

3M MV14-10R/LX 100/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # MV14-10R/LX | Codale Part # 3384025

$1.07/ea
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
2,600 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Diameter
0.09 in ID
Barrel Length
0.45 in
Barrel Type
Brazed
Conductor Size
16 To 14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105 C
Stud Size
10
Temperature Rating
-40 to 105 C
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Ring
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
05112858749

Dimensions

Length
0.93 Inch
Overall Length
0.93 in
Thickness
0.03 in
Width
0.31 in
Codale Part No.
3384025
Color
Blue
Conductor / Wire Size
16 - 14 AWG
Length
0.93 Inch
Material
Plastic
Terminal Type
Ring
Thickness
0.03 Inch
Type
Standard
Width
0.31 Inch
  • Accommodates wire sizes 16 to 14 AWG
  • Stud size #10
  • Standard-style ring tongue fits around the stud
  • 100/carton, 500/case
  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
