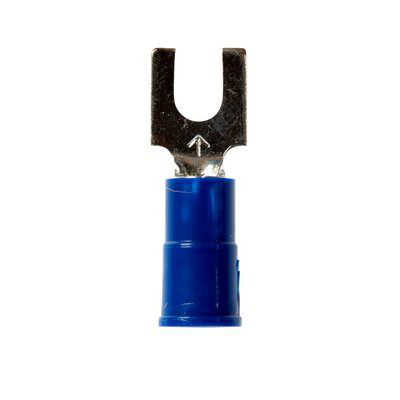

3M MV14-6FBX 100/Bottle Vinyl Insulated Block Fork

Manufacturer: 3M | Catalog # MV14-6FBX | Codale Part # 3384026

$0.80/ea
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
1,700 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch

Technical Information

Barrel Diameter
0.09 in ID
Barrel Length
0.45 in
Barrel Type
Brazed
Conductor Size
16 To 14 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
221 degrees F
Stud Size
6
Temperature Rating
-40 to 105 C
Terminal Size
16 - 14 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Blue
Finish
Tin Plated
Product UPC
05112858746
Used With
Terminal Block

Dimensions

Length
0.85 Inch
Overall Length
0.85 in
Thickness
0.03 in
Width
0.3 in
Codale Part No.
3384026
Color
Blue
Conductor / Wire Size
16 - 14 AWG
Length
0.85 Inch
Material
ETP Copper
Terminal Type
Fork
Thickness
0.03 Inch
Width
0.3 Inch
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case
  • Electrolytic copper construction offers good conductivity
  • Suitable for use in a terminal block
  • Blue vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Accommodates wire sizes 16 to 14 AWG
  • Stud size #6
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
