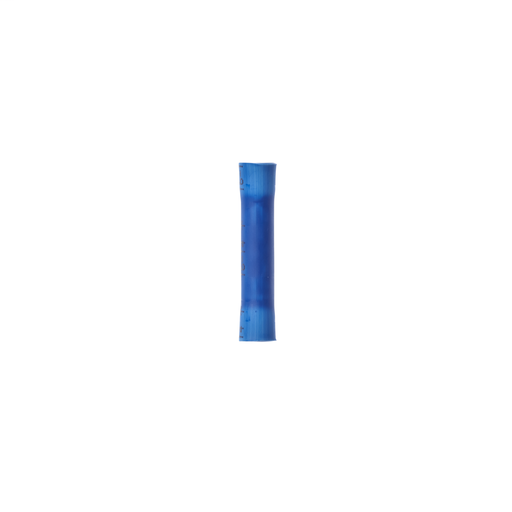

3M MV14BCX 100/Bottle Seamless Vinyl Insulated Butt Connector

Manufacturer: 3M | Catalog # MV14BCX | Codale Part # 3384028
$1.00/ea
ea
Order in multiples of 100 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
1,000 available

For Delivery

Order by Sunday 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Length
0.30 in
Barrel Type
Seamless
Blade Dimensions
0.155 in dia x 0.031 in T
Conductor Size
16-14 AWG
Connection Type
Butt
Insulation Material
Vinyl
Material
Copper
Max Operating Temperature
221 degrees F
Temperature Rating
105 C
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Butt Connectors
Type
Standard, Insulated, Seamless
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Blue
Finish
Tin Plated
Product Type
Connector
Product UPC
05112858740

Dimensions

Length
1.02 Inch
Overall Length
1.02 in
Thickness
0.031 in
Codale Part No.
3384028
Color
Blue
Conductor / Wire Size
16 - 14 AWG
Connection Type
Butt
Length
1.02 Inch
Material
ETP Copper
Terminal Type
Butt Connectors
Thickness
0.031 Inch
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • Accommodates wire sizes 16 to 14 AWG
  • 25/carton, 125/case
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Blue vinyl-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Built-in wire stop for correct positioning
