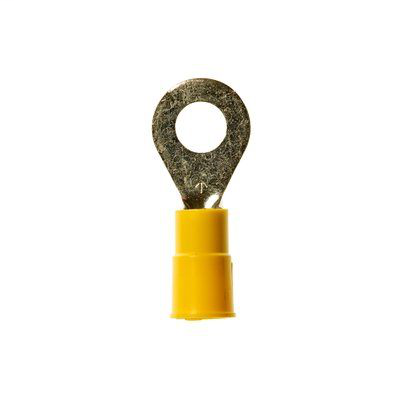

3M MV10-14R/SX 50/Bottle Vinyl Insulated Ring

Manufacturer: 3M | Catalog # MV10-14R/SX | Codale Part # 3384031
$1.22/ea
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
1,250 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Diameter
0.135 in ID
Barrel Length
0.55 in
Barrel Type
Brazed
Conductor Size
12 To 10 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
105 C
Stud Size
1/4 in
Temperature Rating
-40 to 105 C
Terminal Size
12 - 10 AWG
Terminal Style
Standard
Terminal Type
Ring
Type
Ring
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Yellow
Finish
Tin Plated
Product UPC
05112858759

Dimensions

Length
1.26 Inch
Overall Length
1.26 in
Thickness
0.04 in
Width
0.53 in
Codale Part No.
3384031
Color
Yellow
Conductor / Wire Size
12 - 10 AWG
Length
1.26 Inch
Material
ETP Copper
Terminal Type
Ring
Thickness
0.04 Inch
Width
0.53 Inch
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Standard-style ring tongue fits around the stud
  • 50/carton, 500/case
  • Stud size 1/4 in
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Accommodates wire sizes 12 to 10 AWG
