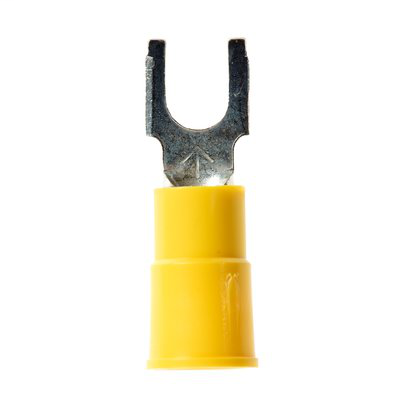

3M MV10-10FBX 50/Bottle Vinyl Insulated Block Fork

Manufacturer: 3M | Catalog # MV10-10FBX | Codale Part # 3384033
$1.22/ea
ea
Order in multiples of 50 (pack qty)
Adding...
Log in or register to view your price, purchase history, and more!
2,600 available

For Delivery

Order by 5:00pm MT for delivery Monday
Not available for delivery*
Check your local branch
Primary Spec Sheet PDF Spec Sheet Product Catalog Page

Technical Information

Barrel Diameter
0.135 in ID
Barrel Length
1/4 in
Barrel Type
Brazed
Conductor Size
12 To 10 AWG
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
221 degrees F
Stud Size
10
Temperature Rating
-40 to 105 C
Terminal Size
12 - 10 AWG
Terminal Style
Block
Terminal Type
Fork
Type
Fork
Voltage
600 Volt

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Yellow
Finish
Tin Plated
Product UPC
05112858766
Used With
Terminal Block

Dimensions

Length
1.03 Inch
Overall Length
1.03 in
Thickness
0.04 in
Width
0.32 in
Codale Part No.
3384033
Color
Yellow
Conductor / Wire Size
12 - 10 AWG
Length
1.03 Inch
Material
ETP Copper
Terminal Type
Fork
Thickness
0.04 Inch
Width
0.32 Inch
  • 50/carton, 500/case
  • Suitable for use in a terminal block
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Stud size #10
  • Yellow vinyl-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Electrolytic copper construction offers good conductivity
  • Accommodates wire sizes 12 to 10 AWG
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
