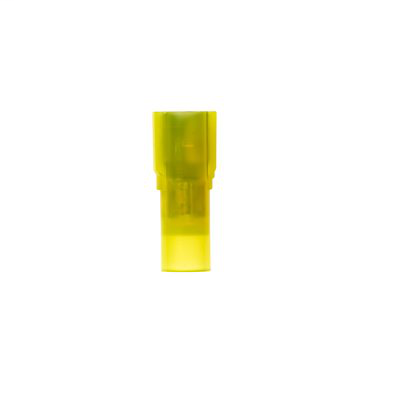

3M MNI10-250DFIX 50/Bottle Nylon Insulated Female Disconnect

Manufacturer: 3M | Catalog # 7000133400 | Codale Part # 3384036
$2.55/ea
ea
Order in multiples of 50 (pack qty)
Log in or register to view your price, purchase history, and more!
200 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page
3M™ Scotchlok™ Color-Coded Female Disconnect Terminal has dents and rolled edges for quick and easy disconnect. The terminal has a fully insulated, nylon, butted seam with an interlocking barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Its durable brass construction offers good conductivity and a tin-plated finish resists corrosion.

Technical Information

Barrel Length
0.25 in
Barrel Type
Interlocking Barrel
Conductor Size
12-10 AWG
Connection Type
Wire
Insulation Material
Nylon
Material
Nylon
Max Operating Temperature
105.0 degrees C
Standard
UL And CSA
Tab Size
1/4 in
Temperature Rating
221 degrees F
Terminal Size
12 - 10 AWG
Terminal Style
Fully Insulated
Terminal Type
Disconnect
Type
E1 Plus Solid State Relay

Manufacturer Information

Brand
3M
Sub Brand
Scotchlok™

General Product Info

12-Digit UPC
051128589304
Color
Yellow
Product UPC
05112858930
Weight
0.2800 lb

Dimensions

Diameter
0.23 Inch
Length
0.99 Inch
Overall Length
0.99 in
Thickness
0.032 in
Width
0.37 in

Certifications and Compliance

Country of Origin
USA
Features
  • UL LISTED: UL Listed (Standard No. UL 310, 3M File No. E70512)
  • CSA CERTIFIED: CSA Certified (Standard No. 22.2 No. 153, 3M File No. LR22190) for use on stranded copper (AWG) wire only
  • COMPATIBLE: Used with steel or brass tabs for factory installations (UL and CSA) and brass tabs for field applications (UL only)
  • PERMANENT CONNECTION: Connects permanently to a pre-stripped end of a stranded copper wire and is suitable for field or factory wiring, with a UL Recognized strain relief required
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
