Hoffman SF0524413 IP54 5" Filter Fan 24V 9011

Manufacturer: nVent Hoffman | Catalog # SF0524413 | Codale Part # 3397457
$220.98/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Side-mount filter fan with click-fit design quickly installs into enclosure wall, no tools or screws required. Simple snap-open grille for easy filter replacement. Enclosure side wall mounting. Reverse airflow option on SF13 models available to push/pull air through higher static pressure. Standard foam-in-place gasket. Similar cut-out sizes as other filter fan manufacturers. Terminal wire connections. Optional thermostat available to save energy and extend service life.

Technical Information

Amperage
0.17 Amp
Applications
Industrial
Current
.17 Amp
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Number of Phases
1 Phase
Size
5.83x5.83x2.56 in
Standard
CE,CSA (fan Motor Only),IP54 Standard,IP55 Optional,Type 12,UL/cUL Recognized
Type

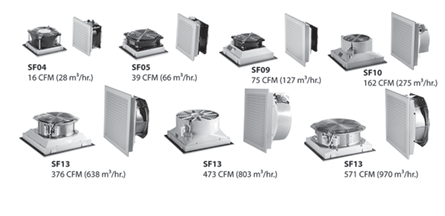

SF05 39 CFM (66 m3/hr.) Side-Mount Filter Fan
Voltage
24 Volt

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Hoffman

General Product Info

12-Digit UPC
783510200015
Finish
Black
Product UPC
78351020001
Weight
1.19 lb

Dimensions

Depth
2.56 Inch
Height
5.83 Inch
Width
5.83 in
Features
  • Simple snap-open grille for easy filter replacement
  • Enclosure side wall mounting
  • Click-fit design quickly installs into enclosure wall; no tools or screws required
  • Reverse airflow option on SF13 models available to push/pull air through higher static pressure
  • Terminal wire connections
  • Optional thermostat available to save energy and extend service life
  • Standard foam-in-place gasket
  • Similar cut-out sizes as other filter fan manufacturers
Applications
  • Automotive assembly
  • Wind energy systems
  • Package handling equipment
  • Industrial automation
  • Food and beverage process controls
Accessories
  • Rain shroud
  • Replacement filters
  • Thermostat
Finish
  • RAL 7035 light-gray, UV-resistant plastic standard
  • RAL 9011 black, UV-resistant plastic optional
Specifications
  • Free air flow from 16 CFM (28 m3/hr.) to 571 CFM (920 m3/hr.)
  • Size rage from 4 in. (102 mm) to 13 in. (325 mm)
  • Operating temperature range fo -4 F/-20 C to 149 F/65 C
  • Service life hours from 40000 to 70000 hours
