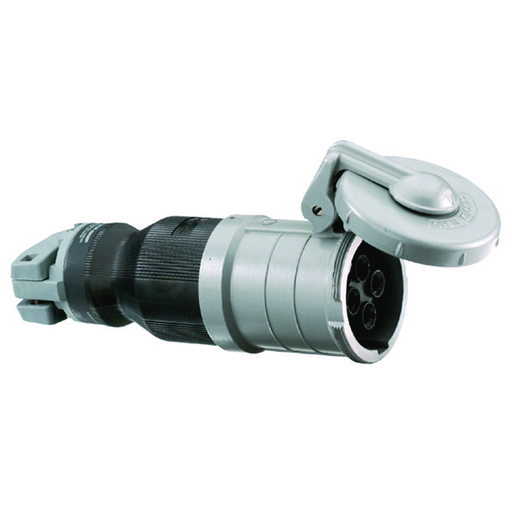

Hubbell HBL460CS2W 60 Amp 600 VAC 250 VDC 3-Pole 4-Wire Style II Watertight IEC Pin and Sleeve Connector

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL460CS2W | Codale Part # 339925
$1,060.05/ea
ea
Log in or register to view your price, purchase history, and more!
20 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Connector Body, 60A 600V AC, 3-Pole 4-Wire Grounding Style 2, Terminal Screws Gray and Black

Technical Information

Amperage
60 Amp
Applications
High Ampacity Connections
Conductor Size
6-4 AWG
Current
60 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Conductors
4-Wire Grounding
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Size
Standard
Standard
CSA,CSA Spec. C22.2 No. 182.1,Type 4X,UL,UL Standard 1682
Style
Standard Service,Style 2 Grounding
Tc Connection
Pressure Screw Terminal
Temperature Rating
-40 to 75 degrees F
Type
Heavy Duty, Watertight
Voltage
250 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve

General Product Info

12-Digit UPC
783585010625
Color
Black/Gray
Environmental Conditions
Watertight
Product Series
UL 1686 Class 1 Insulgrip®
Product UPC
78358501062
Weight
3.2 lb

Dimensions

Height
4.12 Inch
Length
9.81 Inch
Width
5.300 in

Certifications and Compliance

Certifications
And UL 1010 (plugs Only) CSA Certified To CSA Spec. C22.2 No. 182.1,CSA Certified To CSA C22.2 No. 182.1,CSA Certified Type 4X.,No. 94 And No. 159 (plugs Only) UL Listed,No.94 And No. 159 (plugs Only),UL 50,UL Listed,UL Listed,UL Listed And CSA Certified Type 4X.,UL Standard 1682,UL Standard 1682,UL50 And UL1010 (plugs Only)
Country of Origin
USA
Features
  • Watertight neoprene sealing glands for reliable seal
  • Spring-Loaded, gasketed cover for dust-tight seal
  • Pin chamber confines arcing within the interior chamber
  • Watertight
