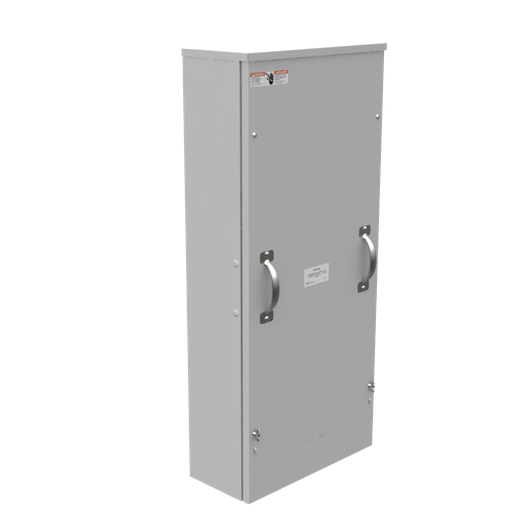

Image thumbnail 2

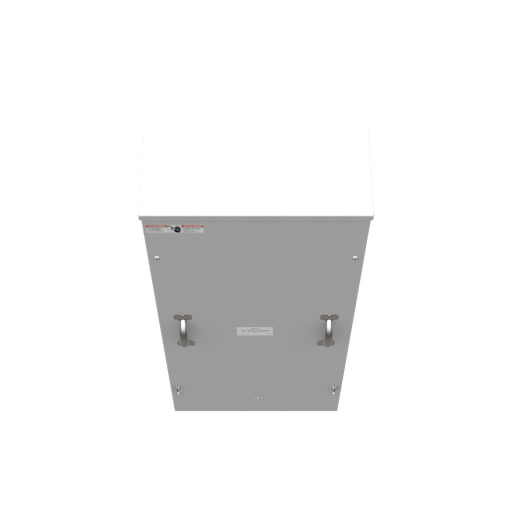

Image thumbnail 3

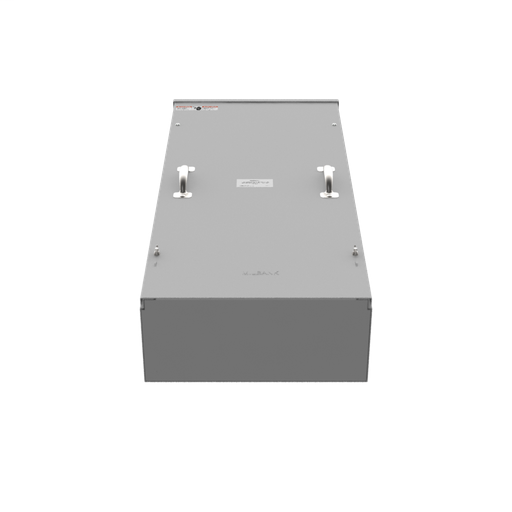

Image thumbnail 4

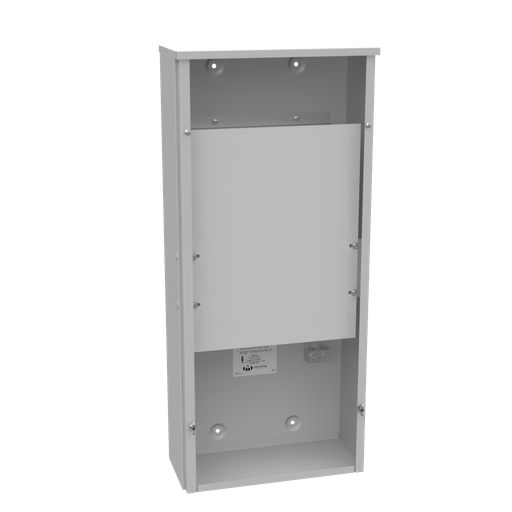

Image thumbnail 5

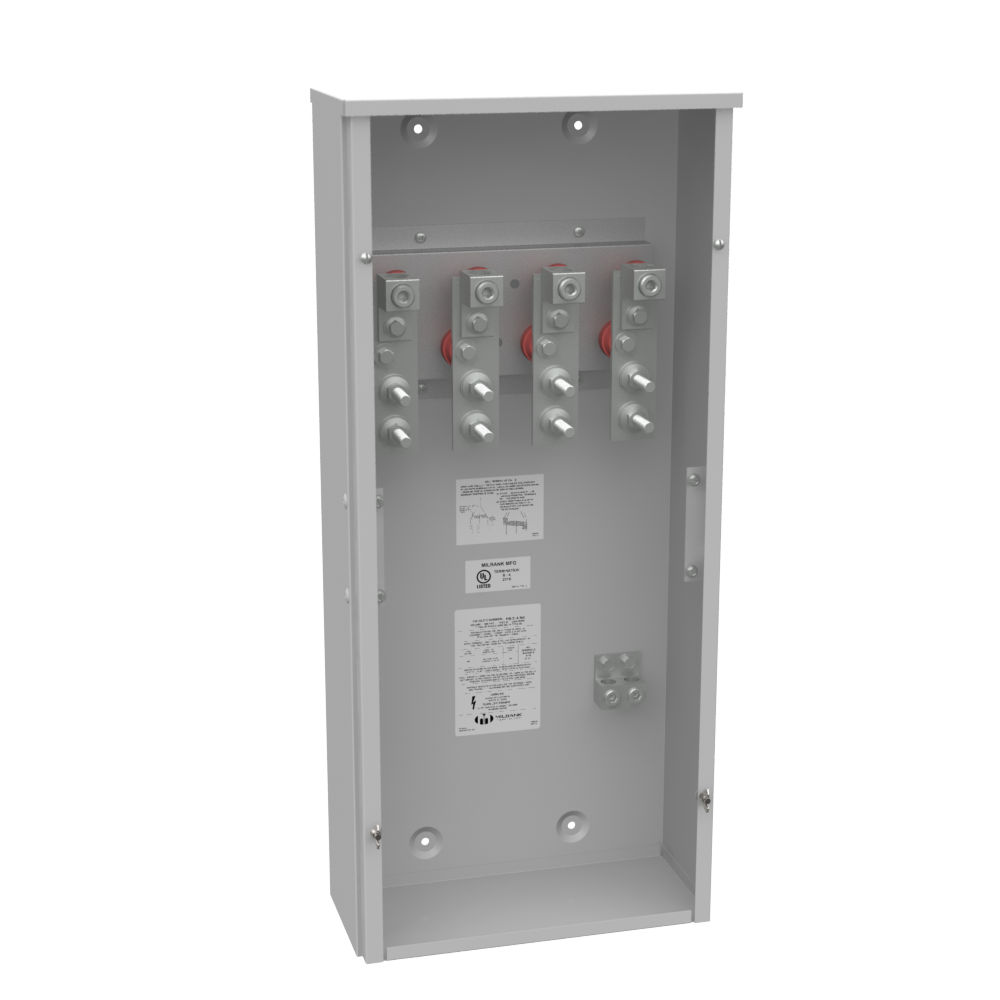

Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Image thumbnail 10
Image thumbnail 11
Image thumbnail 12
Image thumbnail 13
Email

MILB PB-034-NK 400A 3PH UG PULL BOX

Manufacturer: Milbank | Catalog # PB-034-NK | Codale Part # 3410169
$3,598.15/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
400 AMP 3 PH 600 VOLT 16IN-36IN-7IN PNTD STL NO KO LIFT OFF SCR FRONT .5-13 STUDS 1 LUG PER LND - 4-600kcmil 10K AIC

Technical Information

Amperage
400 Amp
Applications
Termination Cabinet
Conductor Material
Copper and Aluminum
Connection Type
Single Position 1/2 Inch Stud Line Side,Single Position 4 AWG To 600 Kcmil Load Side Lugs
Insulation Material
Polypropylene
Material
Steel
Number of Conductors
1
Number of Phases
3 Phase
Short Circuit Current
50000 A
Size
7L x 16.156W x 36.078H
Standard
Type 3R,UL Listed
Tc Connection
1/2 Inch Stud Line Side and 4 AWG to 600 kcmil Load Side Lugs
Type
Line To Load Distribution
Voltage
600 Volt

Manufacturer Information

Brand
Milbank Manufacturing

General Product Info

12-Digit UPC
784572200326
Color
Gray
Construction
G90 Galvanized Steel
Construction Features
G90 Galvanized Steel,Type 3R
Finish
Powder Coated
Jacket Material
No Jacket Material
Product UPC
78457220032

Dimensions

Height
36.078 Inch
Length
7 Inch
Width
16.156 in
