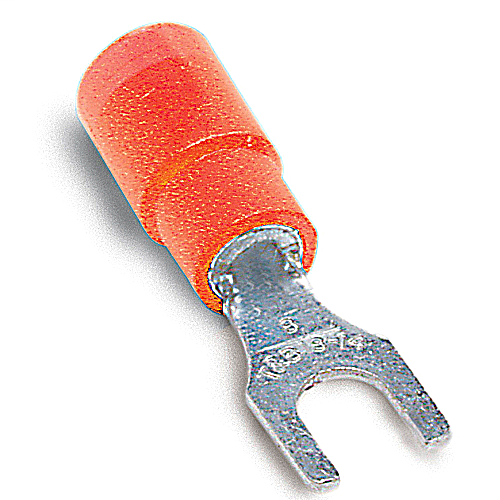

Thomas & Betts 18RA-10FX #10 Bolt Hole 22-16 AWG Wire Range Red Expanded Insulated Vinyl Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 18RA-10FX | Codale Part # 3427426

$94.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
100 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch
Expanded Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated

Technical Information

Conductor Size
22 - 16 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
Vinyl
Insulation Type
Expanded Insulated Vinyl
Material
Copper
Stud Size
#10
Temperature Rating
105 C
Terminal Type
RA
Type
Short Sleeve
Voltage
600 Volt
Wire Size
22-16 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Red
Finish
Electro Tin Plated
Product UPC
78621080094

Dimensions

Height
8.9 Inch
Thickness
.03 in
Width
7 in
Codale Part No.
3427426
Color
Red
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Expanded Vinyl-Insulated Fork Terminal, Length .97 Inches, Width .31 Inches, Maximum Insulation .170, Bolt Hole #10, Wire Range #22-#16 AWG, Color Red, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • UL
  • CSA
  • Fork teminals allow easy installation since the mounting screw does not have to be completely removed. These terminals have expanded insulation support which means a wider wire entry to accommodate heavy wall insulation.
