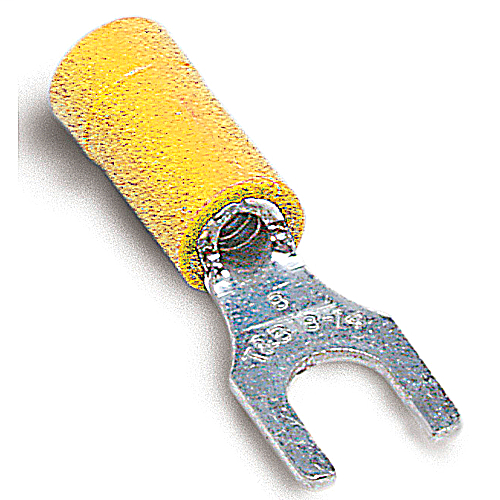

Thomas & Betts 10RC-14F 12 to 10 AWG 1/4 Inch Stud Yellow Electrotinned Copper Vinyl Insulated Fork Terminal

Manufacturer: ABB Thomas & Betts | Catalog # 10RC-14F | Codale Part # 3427920

$114.99/c (100 ea)
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Vinyl-Insulated Fork Terminal, Length 1.15 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated

Technical Information

Barrel Type
Brazed Seam
Conductor Size
12-10 AWG
Flamability Class
Rated V-0 Per UL94
Insulation Material
PVC
Insulation Type
Insulated Vinyl
Material
Copper
Standard
UL E9809
Stud Size
1/4 in
Temperature Rating
105 C
Terminal Type
RC
Type
Short Sleeve
Voltage
600 Volt
Wire Size
12-10 AWG

Manufacturer Information

Family Brand Name
Thomas & Betts
Sub Brand
Sta-Kon

General Product Info

Color
Yellow
Finish
Tin Plated
Product UPC
78621080047
Used With
Round Conductors

Dimensions

Height
3.8 Inch
Thickness
.04 in
Width
5-1/2 in
Codale Part No.
3427920
Color
Yellow
Finish
Electro Tin-Plated
Flammability Rating
UL 94 V-0
Material
Copper
Product Long Description
Vinyl-Insulated Fork Terminal, Length 1.15 Inches, Width .50 Inches, Maximum Insulation .210, Bolt Hole 1/4 Inch, Wire Range #12-#10 AWG, Color Yellow, Copper, Tin Plated
Temperature Rating
105°C
Voltage Rating
600V
  • UL
  • CSA
  • These fork terminals have extra-long PVC insulation sleeve for protection and stress relief at wire's flex point. Brazed seam barrel is serrated for high pull-out value. Insulation is color-coded.
