3M FP301-3/8-100'-Black-Spool 3/8,

Manufacturer: 3M | Catalog # FP301-3/8-100'-Black-Spool | Codale Part # 3464360

$0.76/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days

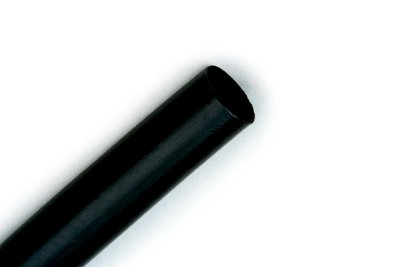

Heat shrink thin wall tubing, 100' spool.

Technical Information

Dielectric Strength
900 V
Flame Retardant
Yes
Operating Temperature
-55 To 135 C
Shrink Ratio
2:1
Type
Single (Thin) Wall

Manufacturer Information

Family Brand Name
3M

General Product Info

Color
Black
Product UPC
05113535580

Dimensions

Inside Diameter
0.187
Length
100 Foot
Outside Diameter
0.375 in
Thickness
0.025
Codale Part No.
3464360
Color
Black
Dielectric Strength
900 Volt
Flammability Rating
UL 224 All Tubing Flame Test
Length
100 Linear Foot
Product Long Description
Heat shrink thin wall tubing, 100' spool.
Shrink Ratio
2:1
Tensile Strength
2400 Pound-Force Per Square Inch
  • 3M FP-301 is rated for 275(deg)F(135(deg)C) continuous operation. FP-301 tubing is typically used as a shrink-fit electrical insulation over cable splices and terminations. It is also used for lightweight wire harness covering, wire marking, wire bundling, component packaging and fire resistant covering. FP-301 clear tubing provides excellent visibility for component packing. All FP-301 tubing is split resistant, mechanically tough, easily marked and resists cold flow. FP-301 is available in black, white, red, blue, yellow and clear in the standard lengths of 6-inch (15,2 cm) cut pieces, 48-inch (1,21 m) and small (8.5-inch core diameter) spools of 50 (15,24 m) and 100 (30,48 m) feet. Four-foot lengths of green tubing are available in sizes 1/16 inch to 1/2 inch. The Assorted Color Kit has a total of 133 pieces and contains seven colors: black, red, white, yellow, blue, green and clear. The Black Kit contains 102 pieces, all 6" (512,4 mm) lengths (see chart below.)Additional sizes, colors and put-ups are available -please contact your 3M Electrical Products Sales Representative. Application Specifications: UL Recognized and CSA Certified at 600 volts at 257(deg)F(125(deg)C); UL File No. E-39100 and CSA No. 38227. MIL-I-23053/5, Class 1,2. AMS 3636 (Type I) and AMS 3637 (Type II). To Order: Reference specific product size, color and description on the following pages. Example: FP-301-1/4, white 6" (15,2 cm) pieces.
