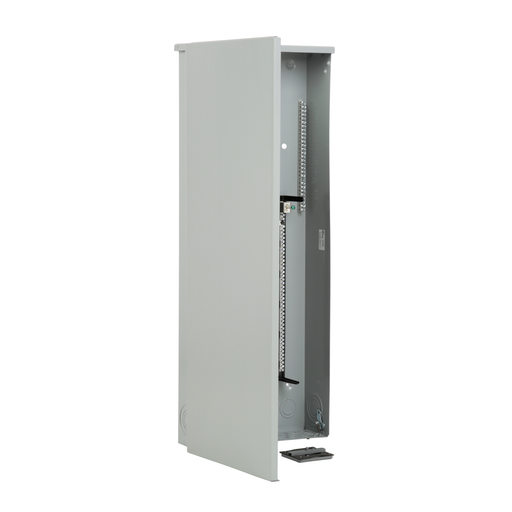

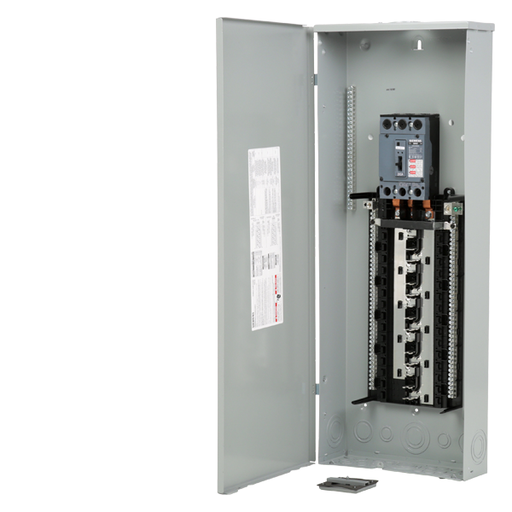

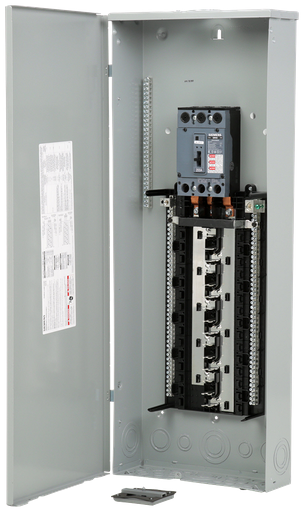

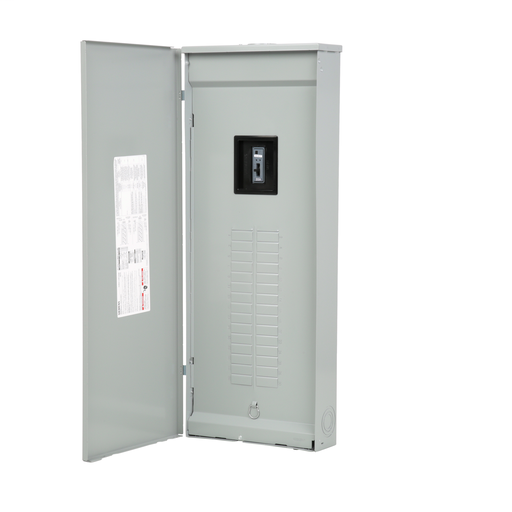

Product image for Siemens PW3054B3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Breaker/Convertible Load Center
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Email

Siemens PW3054B3200CU 120/208/240 VAC 200 Amp 3-Phase 3/4-Wire NEMA 3R Main Breaker/Convertible Load Center

Manufacturer: Siemens | Catalog # PW3054B3200CU | Codale Part # 3476568
$1,913.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
SIEMENS LOW VOLTAGE PL SERIES LOAD CENTER. FACTORY INSTALLED MAIN BREAKER WITH 30 1-INCH SPACES ALLOWING MAX 54 CIRCUITS. 3-PHASE 4-WIRE SYSTEM RATED 120/240V OR 120/208V (200A) 22KA INTERRUPT. SPECIAL FEATURES: COPPER BUS, INTERCHANGEABLE MAIN, GRAY TRIM, NEMA TYPE3R ENCLOSURE FOR OUTDOOR USE.

Technical Information

Amperage
200 Amp
Applications
RESIDENTIALANDLIGHTCOMMERCIALELECTRICDISTRIBUTION
Bus Rating
COPPERBUS
Cable Size
N/A
Circuit Breaker Type
200A
Cover Type
PL Series
Enclosure
TYPE3R
Interrupt Rating
22 kAIC
Mounting Type
FLUSH / SURFACE
Number of Phases
3 Phase
Number of Spaces
30
Size
3061.25
Type
PLSERIESASSEMBLEDLOADCENTER
Voltage
120 Volt

Manufacturer Information

Brand
Siemens
Sub Brand
UL

General Product Info

12-Digit UPC
662643156850
Product UPC
66264315685
Weight
46.000 lb

Dimensions

Height
39-1/2 Inch
Length
15-1/2 Inch
Width
5.000 in

Certifications and Compliance

Country of Origin
Mexico
