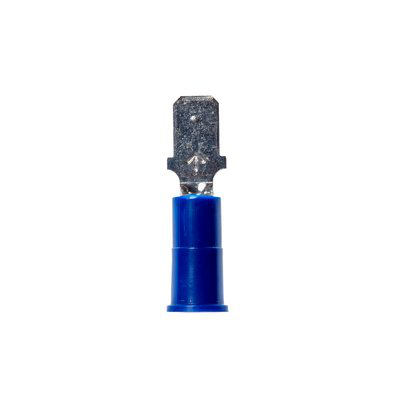

3M MVU14-250DFK MVU14-250DFK VINYL/

Manufacturer: 3M | Catalog # MVU14-250DFK | Codale Part # 3497327

$0.34/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
395 available

For Delivery

Order by 5:00pm MT for delivery tomorrow
Not available for delivery*
Check your local branch

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
14 AWG
Connection Type
Wire
Insulation Material
Vinyl
Material
PVC
Max Operating Temperature
221 degrees F
Terminal Size
16 - 14 AWG
Terminal Style
Standard
Terminal Type
Disconnect
Type
Disconnect

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701777

Dimensions

Diameter
0.23 in
Length
0.87 Inch
Overall Length
0.87 in
Thickness
0.032 in
Codale Part No.
3497327
Conductor / Wire Size
16 - 14 AWG
Connection Type
Wire
Diameter
0.23 Inch
Length
0.87 Inch
Terminal Type
Disconnect
Thickness
0.032 Inch
  • Dents and rolled edges of this female disconnect terminal offer excellent holding force
  • Mates with 0.25-in wide male tab
  • Rated 600V for building wire and 1000V for signs, fixtures or luminaires
  • Blue vinyl-insulated, butted-seam barrel with a funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • 1000/case
  • Made of durable brass for good conductivity and has corrosion-resistant tin plating
  • Accommodates wire sizes 16 to 14 AWG
  • Allows for quick and easy disconnect of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
