3M Industrial Safety MNG18-47PX-A Nylon Insulated 100/Bottle Grip Pin Terminal

Manufacturer: 3M | Catalog # MNG18-47PX-A | Codale Part # 3535359
$1.36/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days
Primary Spec Sheet Product Catalog Page

Technical Information

Barrel Type
Insulation Grip
Conductor Size
18 AWG
Insulation Material
Nylon
Material
Plastic
Max Operating Temperature
221 degrees F
Terminal Size
22 - 18 AWG
Terminal Type
Pin
Type
Pin

Manufacturer Information

Family Brand Name
3M
Sub Brand
Scotchlok

General Product Info

Color
Red
Product UPC
05112858845

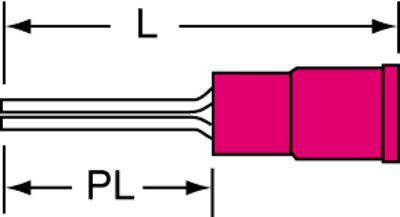

Dimensions

Length
0.9 Inch
Codale Part No.
3535359
Color
Red
Conductor / Wire Size
22 - 18 AWG
Length
0.9 Inch
Material
Plastic
Terminal Type
Pin
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
  • Accommodates wire sizes 22 to 18 AWG
  • Provides quick connection for set screws or clamps that are used to make electrical contact
  • Red nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Funnel-designed, seamless brass sleeve offers easy insertion of wires
  • 100/carton, 500/case
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 3M™ Scotchlok™ Color-Coded Pin Terminal ensures an ideal fit while offering reliable and safe performance. The terminal has a nylon-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • 3M™ Scotchlok™ Pin Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, seamless brass sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, nylon-sleeve insulation ensures positive grip and has a stepped design for mistake-proof crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
