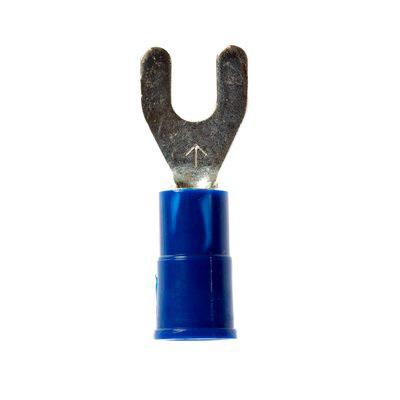

3M Electrical MVU14-6FLK Vinyl Insulated Butted Seam Locking Fork Terminal

Manufacturer: 3M | Catalog # MVU14-6FLK | Codale Part # 3543229

$0.34/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 6 to 8 days

Technical Information

Barrel Length
0.25 in
Barrel Type
Butted
Conductor Size
16 To 14 AWG
Insulation Material
Vinyl
Material
PVC
Stud Size
6
Terminal Size
16 - 14 AWG
Terminal Style
Locking
Terminal Type
Fork
Type
Fork

Manufacturer Information

Family Brand Name
Scotchlok
Sub Brand
Scotchlok

General Product Info

Product UPC
05400701872

Dimensions

Length
0.88 Inch
Overall Length
0.88 in
Thickness
0.03 in
Width
0.25 in
Codale Part No.
3543229
Conductor / Wire Size
16 - 14 AWG
Length
0.88 Inch
Terminal Type
Fork
Thickness
0.03 Inch
Width
0.25 Inch
  • Electrolytic copper construction offers good conductivity
  • Spring-like tongue firmly fits around the stud
  • 1000/case
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • Accommodates wire sizes 16 to 14 AWG
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • Blue vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
  • Stud size #6
  • Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
  • Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
