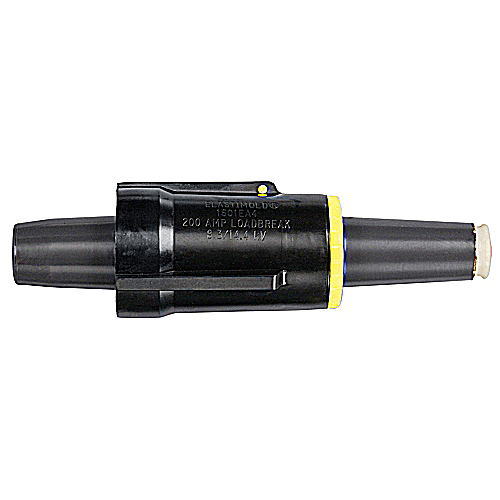

ELASTIMOLD 1601EA4 15KV EXTENDED BSHG INSERT

Manufacturer: ABB Elastimold | Catalog # 1601EA4 | Codale Part # 3566560
$148.99/ea
ea
Adding...
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
PDF Spec Sheet
15kV 200 Amp, Loadbreak Extended Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.

Manufacturer Information

Family Brand Name
N/A

General Product Info

Product UPC
78378666296
Application
Fully rated with a 15kV class, 200 Amp load break bushing interface. The load break bushing insert fits a standard ANSI bushing well interface and becomes the apparatus bushing interface for elbow connections.
Brand Name
Elastimold
Codale Part No.
3566560
Material
EPDM Rubber
Product Long Description
15kV 200 Amp, Loadbreak Extended Bushing Insert, Includes internal torquing feature using 200AT Assembly Tool.
Size
11.00 inches (279.4 mm) long, 3.00 inches (76.2 mm) Diameter
Temperature Rating
-40 degrees C to 65 Degrees C
Type
Bushing Insert
