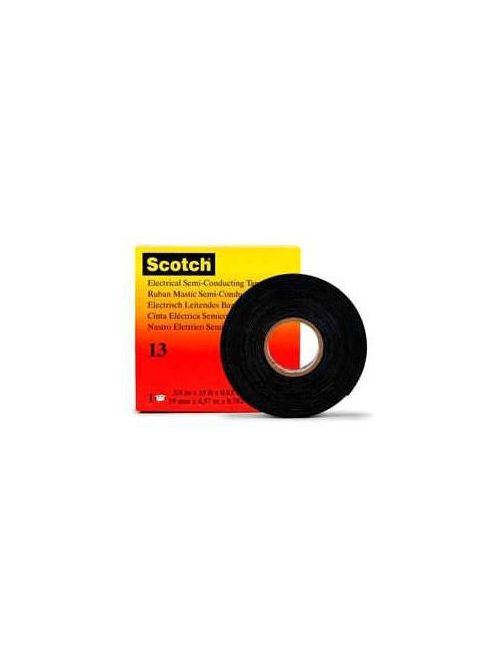

3M 13-3/4x15FT Semi-Conducting Tape

Overview

Scotch® Electrical Semi-Conducting Tape 13 is a 30-mil, highly conformable, electrical semi-conducting tape. This tape retains its conductivity with stretch. It offers excellent performance with the most solid dielectric cable insulations and conductors. The tape is suitable for indoor or outdoor applications.

Scotch® Electrical Tape 13 is non-vulcanizing and shelf stable while maintaining stable conductivity over a wide temperature range. The tape elongates easily and conforms to irregular shapes. This semi-conducting, premium-grade tape provides excellent shielding for cable joints on solid dielectric insulated power cables. It withstands temperatures up to 194 degrees F (90 degrees C). The ethylene propylene, rubber-based tape electrically rounds out high-voltage connectors and bonds to insulating materials that minimize electrical stresses. ASTM Approved & RoHS 2002/65/EC Compliant.

• Rubber resin offers optimized adherence
• Tape measures 3/4 in x 15 ft x 30 mil
• Comes in black color
• Compatible with high-voltage splicing and terminating materials
• Withstands temperatures up to 194 degrees F (90 degrees C)
• Rated for 600V applications
• ASTM Approval and RoHS 2011/65/EU Compliant.
• 50 rolls/case, BULK

Specifications

• 3M ID: HT002000327
• Adhesive Material: The adhesive layer is a rubber-based
• Agency Approvals: ASTM D-4388 type IV
• Applications: Electrical Maintenance
• Backing Material: Ethylene Propylene Rubber
• Backing Thickness (metric): 0.76 mm
• Brand: Scotch
• Breaking Strength: 6 lb/in
• Case Quantity: 50 Rolls
• Color: Black
• Dielectric Strength (V/mil): Conductive
• Elongation: 800 %
• Elongation at Break: 800%
• Emergency Overload Temperature (Celsius): 130°C
• Emergency Overload Temperature (Fahrenheit): 266°F
• Family: Scotch® Electrical Semi-Conducting Tape 13
• High Temperature Rating: 194°F (90°C)
• Insulated: No
• Length: 15 Linear Foot
• Length (Metric): 4.5 m
• Liner/Linerless: Liner
• Material: Semi-Conducting EPR with Liner
• Maximum Operating Temperature (Celsius): 130 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 266 Degree Fahrenheit
• National Stock Number: 5970004418629
• Operating Temperature (Celsius): Up to 90 °C
• Operating Temperature (Fahrenheit): Up to 194 °F
• Product Markets: Electrical Construction, Electrical MRO, Power Distribution
• Product Type: Rubber and Splicing Tapes
• RoHS 2011/65/EU Compliant: RoHS 2011/65/EU Compliant, Yes
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Rolls per Case: 50
• Self-Extinguishing: No, Sunlight Resistant
• Self Sticking/Amalgamating: No, Sunlight Resistant
• Shelf Life: 5 Year
• Suitable for High Voltage: RoHS 2011/65/EU Compliant, Yes
• Tape Color: Black
• Tape Grade: Premium
• Tape Length (metric): 4.5 m
• Tape Type: Electrical Semi-Conducting
• Tape Width (metric): 19 mm
• Tensile Strength: 200 Pound-Force Per Square Inch
• Thickness: 30 mil
• Thickness (Metric): 0.76 mm
• Total Thickness: 0.76 mm
• Trademark: Scotch
• UV Resistant: No, UV Resistant
• Voltage Application: All voltage classes
• Vulcanizing: No, Sunlight Resistant
• Width: 0.75 Inch
• Width (Metric): 19 mm
